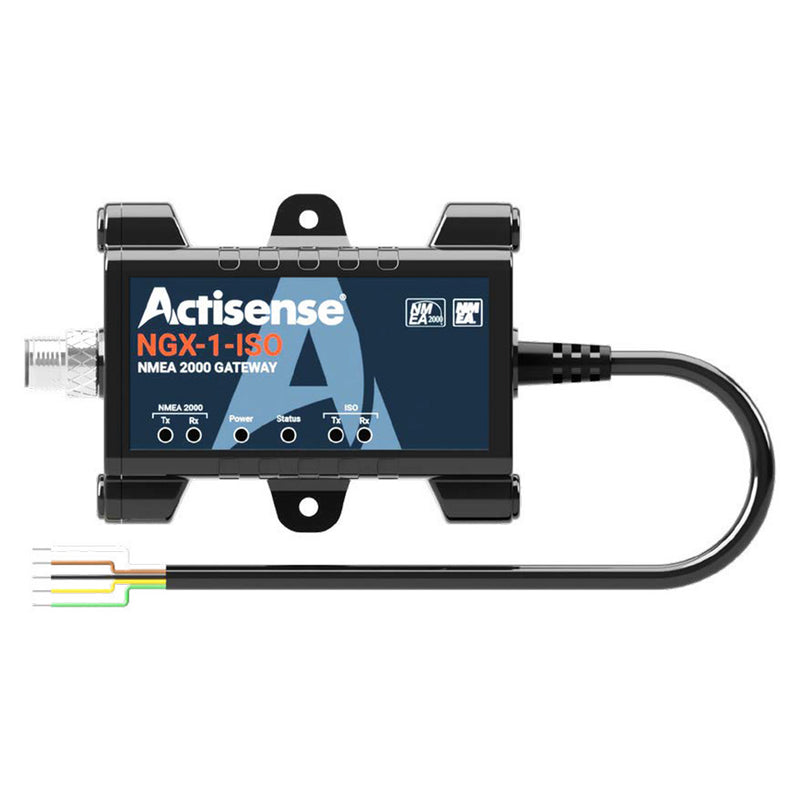

Actisense 0183 to N2K Gateway w/PC Interface, ISO Connection [NGX-1-ISO]
0183 to N2K Gateway with PC Interface, ISO Connection
Intelligent Gateway technology enables PC interfacing and NMEA data conversion…
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.
Features:
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
- Vital NMEA 2000 diagnostic tool
- OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Technical Specifications
Power Supply
- Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
- Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
- Load Equivalent Number (LEN) - 2
NMEA 2000 Port
- Speed / Baud Rate - 250kbps
- Connectivity - M12 Male (A coded)
ISO Port
- Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible
- Speed/Baud Rate - 4800 to 230400 Baud
- Output Voltage Drive - >= 2.1V (differential) into 100Ω
- Output Current Drive - 20mA max.
- Output Protection - Short circuit and ESD
- Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second)
- Input Protection - Current limited and overdrive protection to 40VDC
- Connectivity - 5mm stripped and tinned wire
- Cable Length - 0.75m
Isolation
- NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
- NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V
Mechanical
- Housing Material Body - Flame retardant Polycarbonate
- Housing Material End Caps - Flame retardant PBT
- Weight - 113g
Approvals and Certifications
- NMEA 2000 - NMEA 2000 Certified
- NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements
- RoHS and REACH - Compliant
- Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
- EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
- Environmental Protection IP67
- Operating Temperature -25°C to +70°C
- Storage Temperature -30°C to +70°C
- Recommended Humidity 0 to 93% RH @ 40°C
- Guarantee 3 years, extended to 5 years upon registration
Specifications:
- Data Interface: NMEA 0183
- Box Dimensions: 1"H x 5"W x 6"L WT: 0.35 lbs
- UPC: 5060998710553
