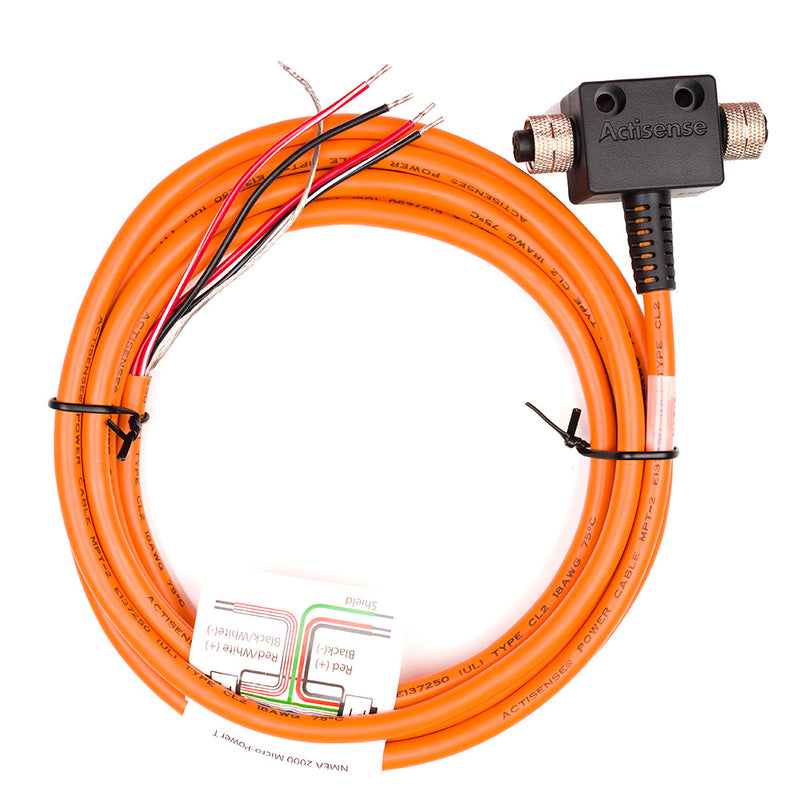

Actisense NMEA2000 Micro T-Piece w/Female Connectors 3M UL Certified Cable [A2K-MPT-2]
NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable
The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.
Now with improved strain relief!
The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.
The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.
The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.
Technical Specifications:
Electrical
- Rated Current - 4A (each feed)
- Rated Voltage - 60VDC
Mechanical
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PA66 (30% Glass Filled), Black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, black
- Housing - PVC, black
- Cable Jacket Material - 0.8mm Nom. PVC, orange
- Cable Outer Diameter - 6.7mm ±0.254mm
- Cable Length - 3M
- Wire Length - 100mm (7mm stripped)
- Wire Jacket - PVC
- Wires - 18 AWG (stripped and tinned)
- Drain - 18 AWG (34-strand tinned copper)
- Shield - Al-mylar
- Weight - 290g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -20°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Connection Gender: Female-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 3m
- NMEA 2000 Connectors: Tee Connectors
- Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs
- UPC: 5060998710140
Owner's Manual (pdf)
Brochure (pdf)
