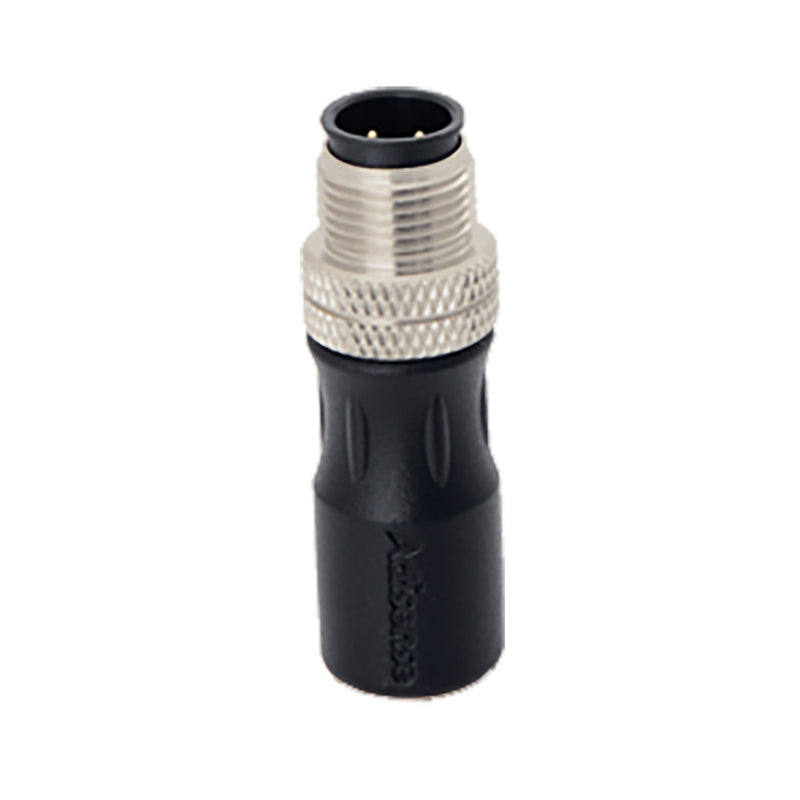

Actisense NMEA2000 Micro Terminator - Male [A2K-TER-M]
NMEA2000 Micro Terminator - Male
Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.
Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge
Technical Specifications:
Electrical
- Rated Voltage (power pair) - 60VDC
- Rated Current - 4A
- Internal Termination Resistors - 120 Ω ± 1% 500mW
Mechanical
- Male Contact - Brass, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - PVC, black
- Weight - 15g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Connection Gender: Male
- Data Interface: NMEA 2000
- NMEA 2000 Connectors: Terminators
- Box Dimensions: 1"H x 1"W x 2"L WT: 0.03 lbs
- UPC: 5060998710300
Owner's Manual (pdf)
Brochure (pdf)
| Brand / Manufacturer | Actisense |
|---|---|
| Category / Product Type | NMEA Cables & Sensors |
| MPN / Manufacturer Part # | HTS-111806 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
- Free Ground Shipping: Free shipping on all orders within the continental United States.
- Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
- 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
- Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
