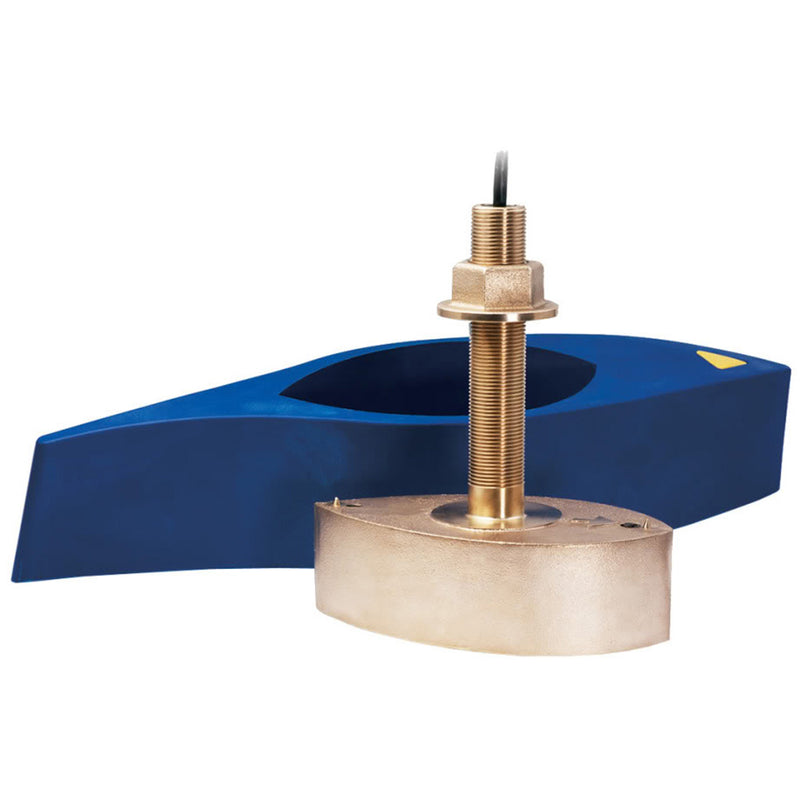

Airmar B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth Temp [B265C-LM-0]
What's in the Box? (Package Includes)
Factory Sealed- 1x Airmar Transducer Unit with 33 ft / 10 m Attached Cable
- 1x Mounting Bracket (Stainless / Composite) or Hull Nut & Fairing Block
- 1x Stainless Steel Mounting Hardware Pack
- 1x Installation Guide & Transom Placement Template
B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
- Patented Xducer ID® technology
Specifications:
- Power Rating: 1 kW
- Max Deadrise Angle: 20°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: 8 m (25') and above
- Usable Shaft Length: 121 mm (4.75")
- Mounting Style: Thru-Hull with Fairing
- Acoustic Window: Urethane
- Common Use: Fishing, Commercial Fishing
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Max Deadrise: Up to 20° with fairing
- Max Depth: Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
- Medium Frequency: 85-135 kHz
- Medium Frequency Beamwidth: 16°-11°
- Retractable housing: No
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Weight: 7.3 kg (16 lbs.)
