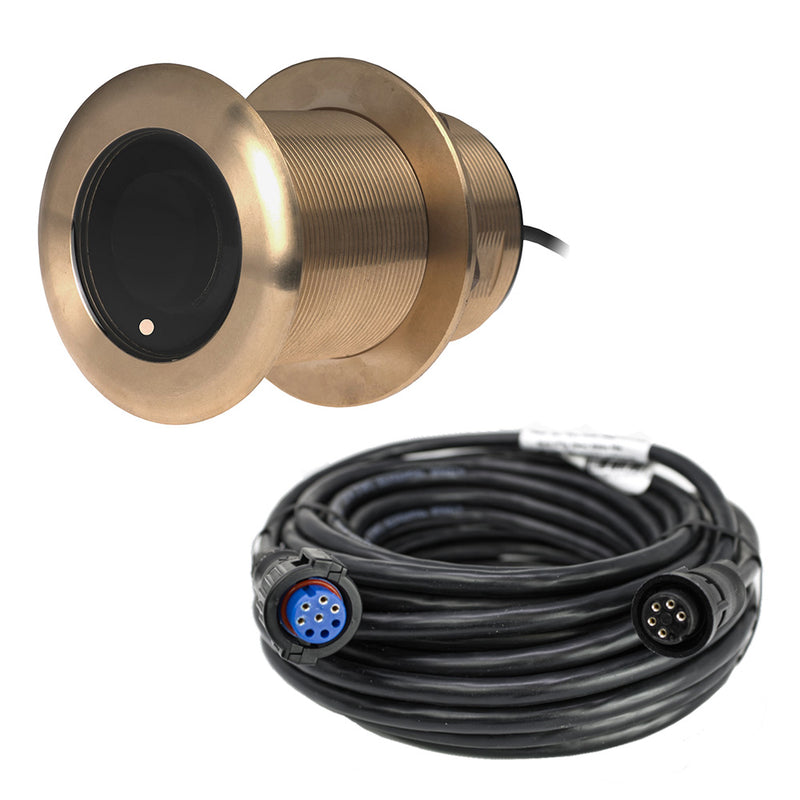

Airmar B60 20 Degree Bronze Tilted Element 600W 8-Pin f/Garmin [B60-20-8G]
What's in the Box? (Package Includes)
Factory Sealed- 1x Airmar Transducer Unit with 33 ft / 10 m Attached Cable
- 1x Mounting Bracket (Stainless / Composite) or Hull Nut & Fairing Block
- 1x Stainless Steel Mounting Hardware Pack
- 1x Installation Guide & Transom Placement Template
B60 20 Degree Bronze Tilted Element 600W 8-Pin for Garmin
The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull's deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
Specifications:
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 60 mm (2-3/8")
- Usable Shaft Length: 68.5 mm (2.70")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: Yes
- Weight: 1.4 kg (3 lbs.)
Specifications:
- Cable Length (Feet): 26'
- Chirp: No
- Imaging: Standard
- Mounting Style: Thru-Hull
- Pins: 8
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 2"H x 8"W x 8"L WT: 4.23 lbs
