Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black [6005200]

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black [6005200]

MPN / Part #: HTS-49217 Brand: Blue Sea Systems In Stock – Ready to Dispatch
$39.99
📍 Ships From: Tampa, FL or Bayville, NJ
⏱️ Est. Delivery: 1 - 3 Business Days (USPS Economy Ground)
What's in the Box? (Package Includes)
Factory Sealed
  • 1x Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black — Original Factory Package
  • All standard accessories and hardware as packed by the manufacturer
  • Manufacturer's documentation, warranty card, and instruction manual

For exact package contents, see the manufacturer's product page

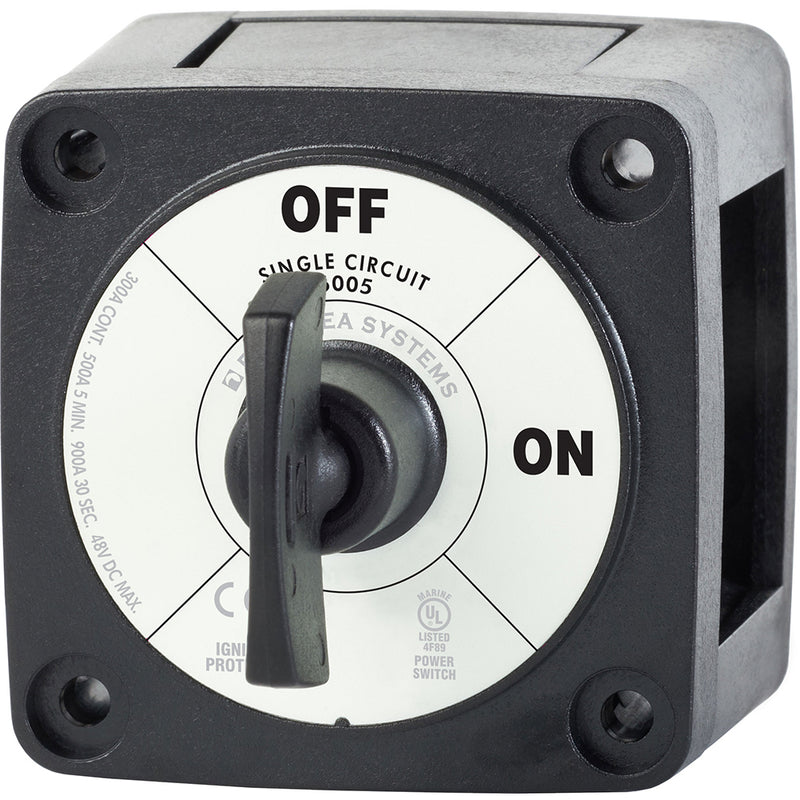

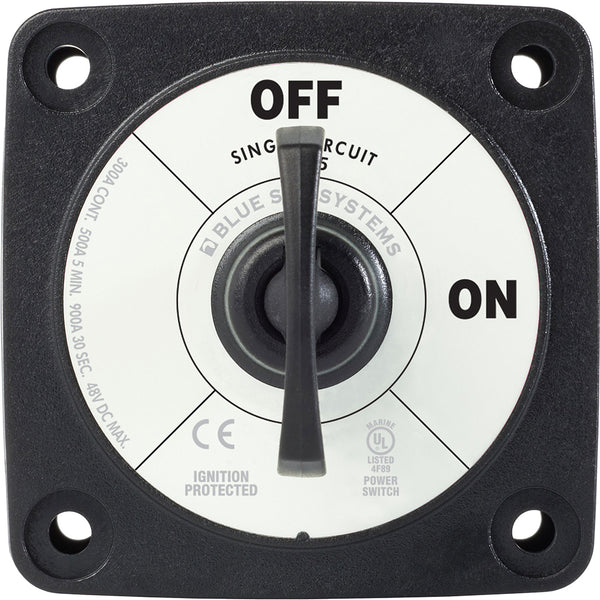

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

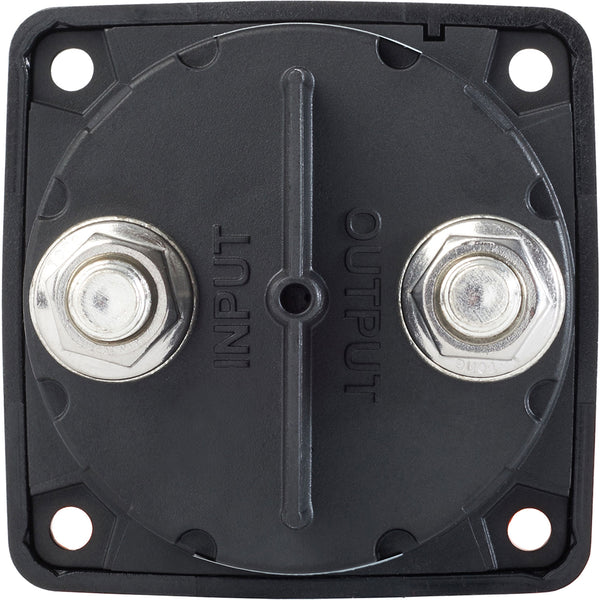

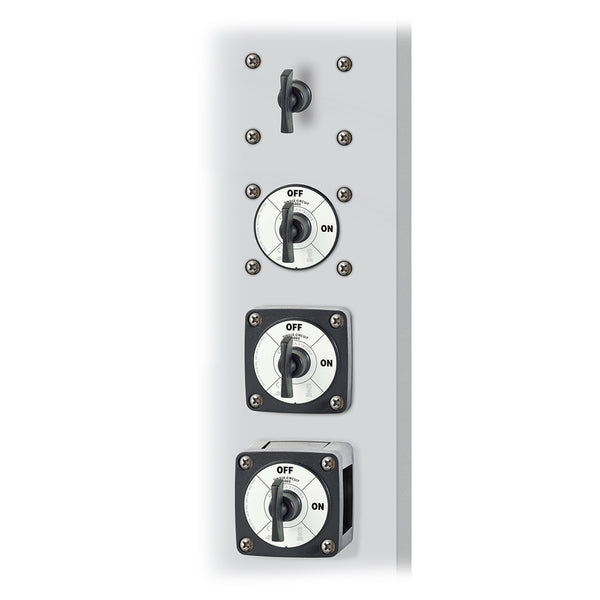

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AFD: No
  • Continuous Amperage: 300a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.65 lbs
  • UPC: 632085600525

Owner's Manual (pdf)
Brand / Manufacturer Blue Sea Systems
Category / Product Type Battery Management
MPN / Manufacturer Part # HTS-49217
Item Condition 100% Brand New / Factory Sealed
Warranty Status Full Original Manufacturer Warranty Backed
