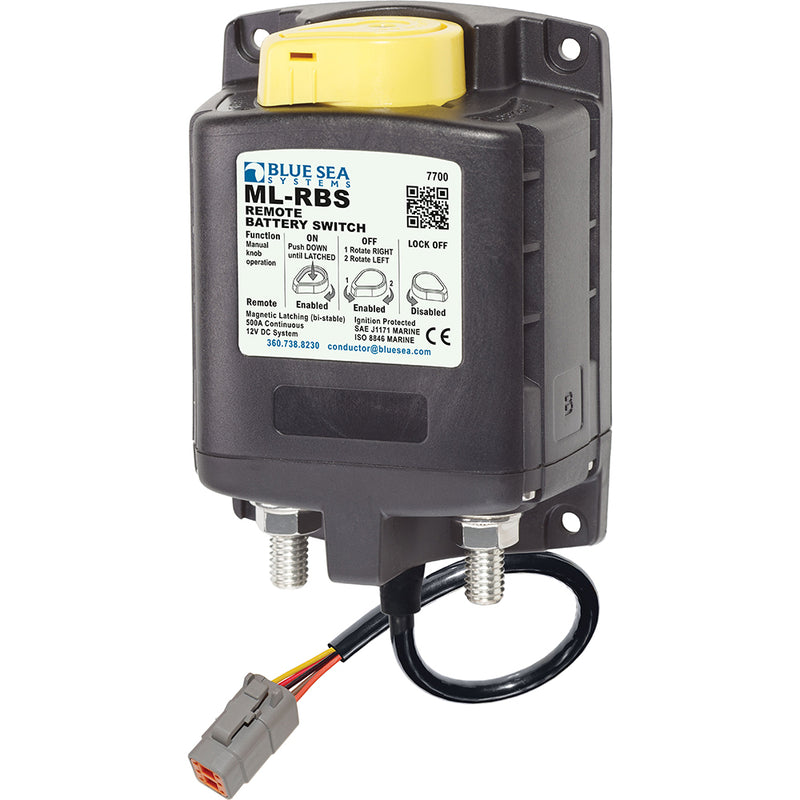

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features:

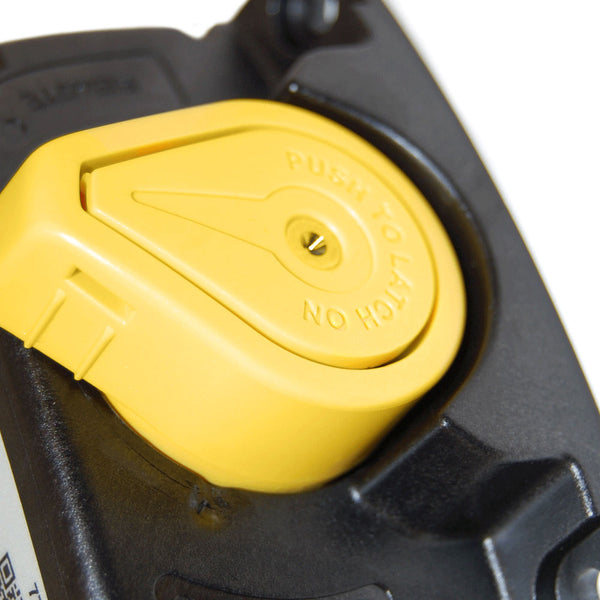

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

Specifications:

  • Control Circuit Connection: Deutsch DTM
  • Nominal Voltage: 12VDC
  • Coil Function: Bi-Stable
  • Mounting: #10
  • Amperage Operating Current Continous: 0mA
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 30 Seconds: 1450A DC
  • Cable Size to Meet Ratings: 2x (4/0)
  • Live Current Switching: 300A@12VDC
  • Master Control Switch Capability: No
  • Mechanical Endurance: 100,000 Cycles
  • Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
  • Terminal Stud Length: 0.875" (22.23 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.75lb (0.79 kg)
