Blue Sea PowerBar 1000 - 8 3/8" Terminal Studs w/Cover [1990]

☆ ☆ ☆ ☆ ☆
$235.99
Authorized Dealer Genuine Brand Warranties
NMEA Support Expert System Design
Secure Checkout Encrypted Gateway
30-Day Returns Hassle-Free Return

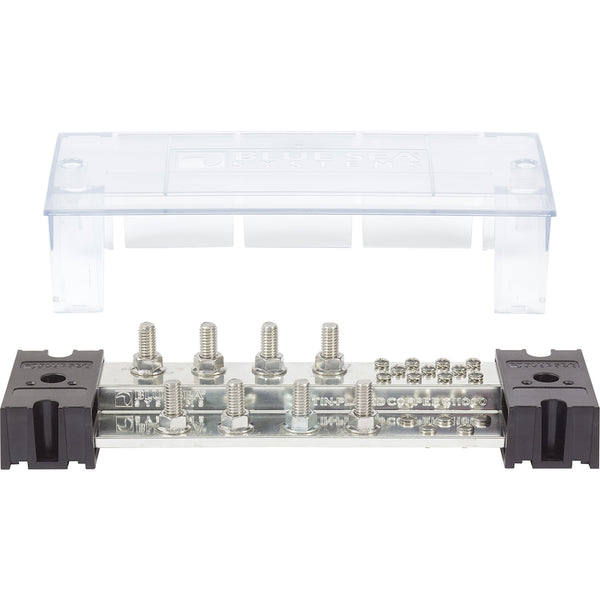

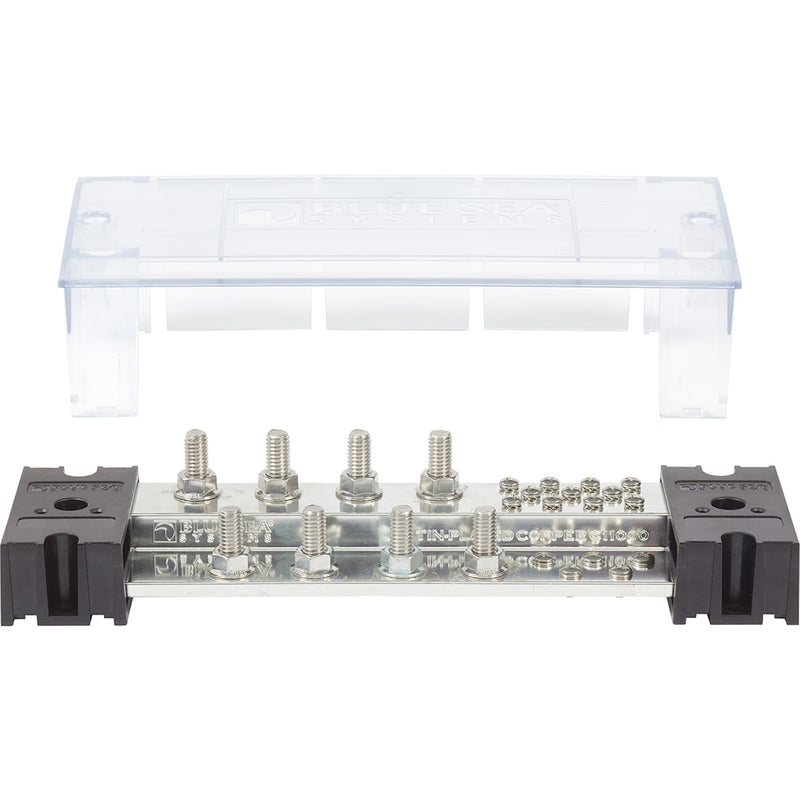

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity

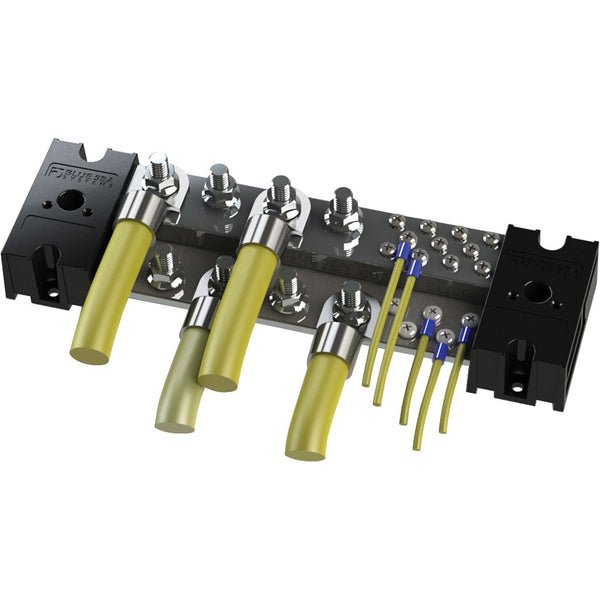

  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:
  • Number of Terminal Studs: 8
  • Continuous Rating: 1000A
  • Bus Material: Tin-Plated Copper C11000
  • Mounting Holes: Accepts #10 (M5) Screws
  • Terminal Stud Size: 3/8

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Quick Guide (pdf)
