Furuno NavPilot 300 Yanmar VC10/BLV Package [NAVPILOT 300-YAN]

NavPilot 300 Yanmar VC10/BLV Autopilot Package

Steer By Wire for Yanmar VC10/8LV

The NavPilot 300-YAN is a complete NavPilot 300 system with all of the necessary components, cables and gateways to connect to a Yanmar VC10/8LV system (not included).

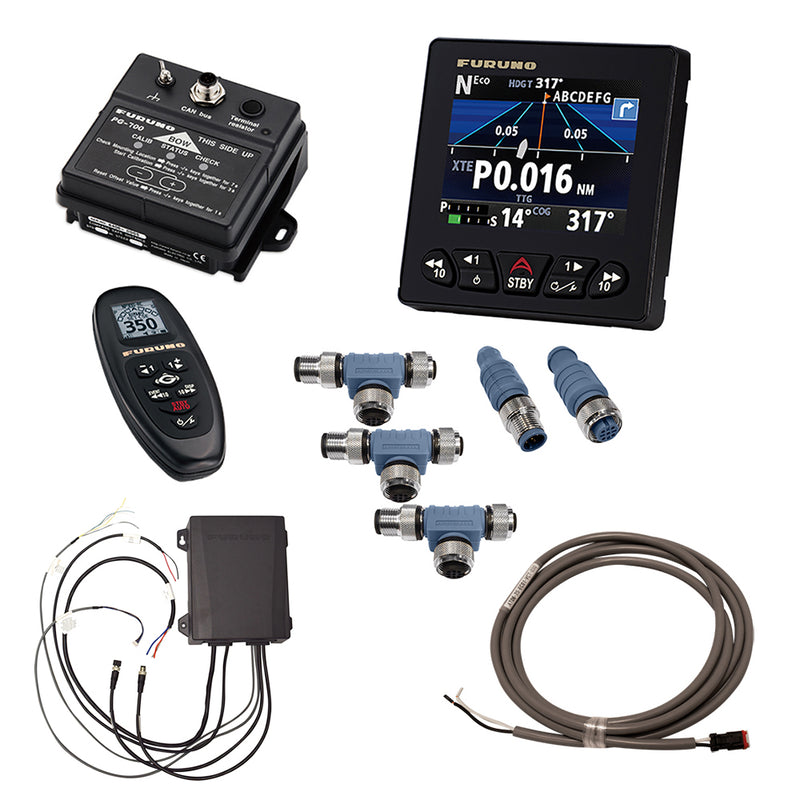

What's in the Box?

• FAP-3011- Control Unit
• GC-001 - Gesture Controller
• FAP3012 - Processor Unit
• PG700 - Heading Sensor Unit
• AIR-335-792 - NMEA2000 Micro Terminator
• AIR-335-791 - NMEA2000 Micro Terminator
• AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male x 3
• 000-193-626-10 - CABLE ASSY YANMAR VC10
• DOC-300-YAN - NavPilot 300-YAN Document

NavPilot 300 is not your ordinary Autopilot

The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

Gesture Control - just push, point and shoot!

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

(Note: A Furuno PG700, SC33 or other compatible NMEA2000 vessel heading source is required.)

Versatile Display Modes on a vivid 4.1" Color LCD Display

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

Integrate your helm with NavPilot's FishHunter mode

FishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Furuno Fantum Feedback

With Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.

Specifications:

• Steering Type: Steer-By-Wire
• Box Dimensions: 15"H x 15"W x 26"L WT: 14.8 lbs
