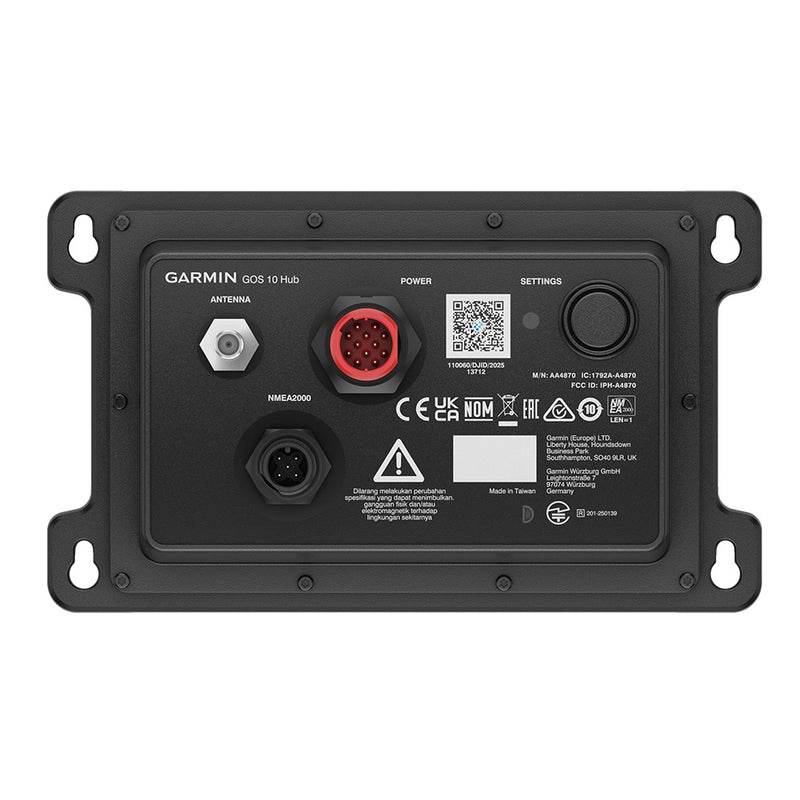

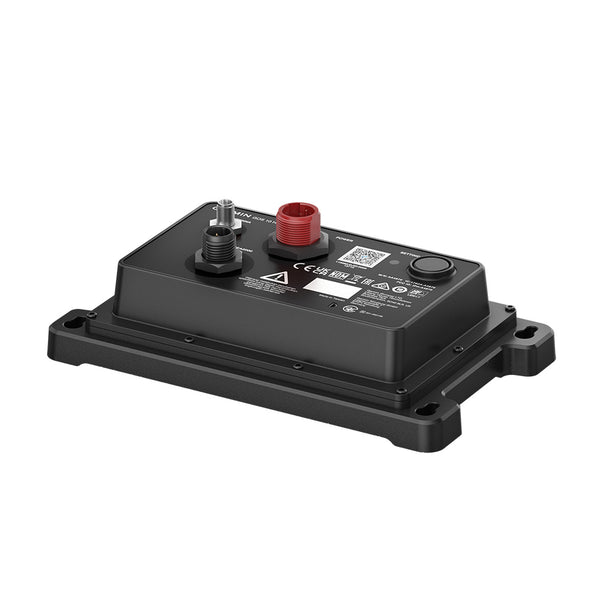

Garmin GOS 10 Hub f/Garmin OnBoard System [010-02908-10]
GOS™ 10 Hub for Garmin OnBoard™ System
Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.
What's In The Box?
- GOS™ 10 Hub for the Garmin OnBoard System
- 12-pin fused power and engine cut-off harness with external buzzer
- External antenna for wireless connection to MOB tags
- NMEA 2000® T-connector
- NMEA 2000 drop cable
- Installation hardware
- Documentation
Specifications:
- Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
- Weight: 171.7 g
- Wireless range: 66 ft (up to 20 m)
- Supply voltage range: 10-32V
- Operating temperature range: -15 °C to 70 °C
- Typical power consumption: 50mA @ 12V or 0.6W
- NMEA 2000 LEN®: 1
- Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
- Engine interface: Hardwired, in-line connection to ignition harness
- Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
- Water rating: IPX6 and IPX7
- Compass-safe distance: 5 cm
| Brand / Manufacturer | Garmin |
|---|---|
| Category / Product Type | Network Cables & Modules |
| MPN / Manufacturer Part # | HTS-111139 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
- Free Ground Shipping: Free shipping on all orders within the continental United States.
- Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
- 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
- Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
Frequently Asked Questions
Q: Is this Garmin Network Cables & Modules covered by a warranty?
A: Yes. High Tide Supply is an authorized dealer of Garmin. All products are 100% brand new, authentic, and carry full manufacturer warranty.
Q: How fast does shipping take for the Garmin GOS 10 Hub f/Garmin OnBoard System [010-02908-10]?
A: Standard ground shipping is free on all orders. Orders are processed from regional fulfillment hubs in 0–1 business days, with delivery taking 1–5 business days.
Q: What is the return policy for Garmin GOS 10 Hub f/Garmin OnBoard System [010-02908-10]?
A: Brand new, unopened items in original factory packaging can be returned within 30 days. Customers must email info@hightide.supply for an RMA number. Return shipping is customer responsibility. Trolling motors, lithium batteries, and heavy freight items are final sale.
