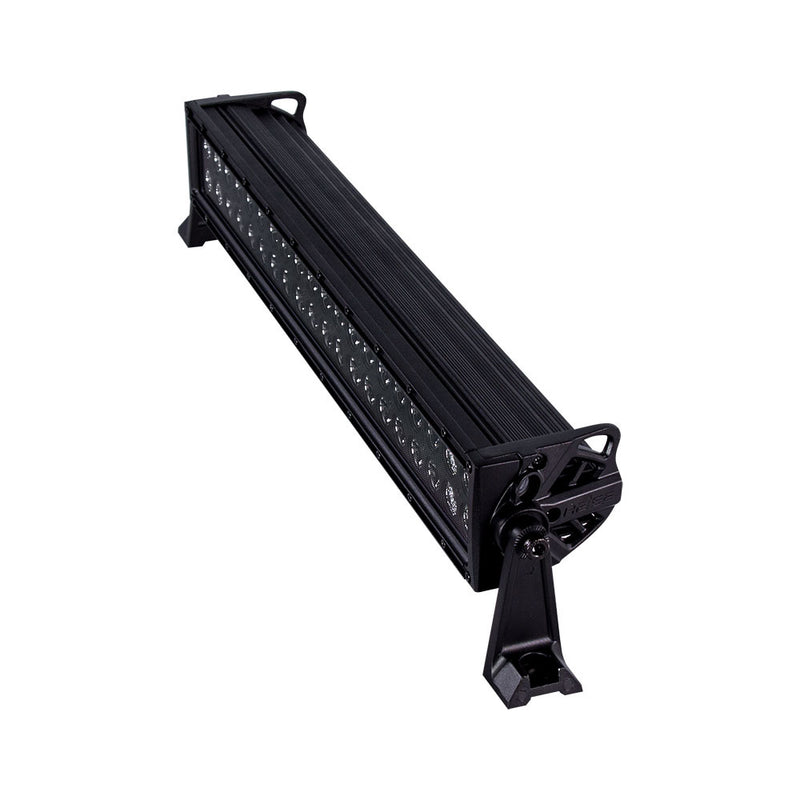

HEISE Dual Row Blackout LED Light Bar - 22" [HE-BDR22]
$475.99
$528.99
Authorized Dealer
Genuine Brand Warranties
Quick Dispatch
Fulfillment from FL
30-Day Returns
Hassle-Free Return
Dual Row Blackout LED Light Bar - 22"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 120W (40–3W CREE LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 655
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die–cast Aluminum Housing
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Hole Dimensions:
- Brackets turned inward – 21.3125"
- Brackets turned outward – 23.75"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 6.3 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 22"
- Housing: Black
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 6"H x 6"W x 27"L WT: 7.8 lbs
- UPC: 086429312740
| Brand | HEISE LED Lighting Systems |
| Product Type | Lighting |
| SKU | HTS-69732 |
| Availability | Out of Stock |
