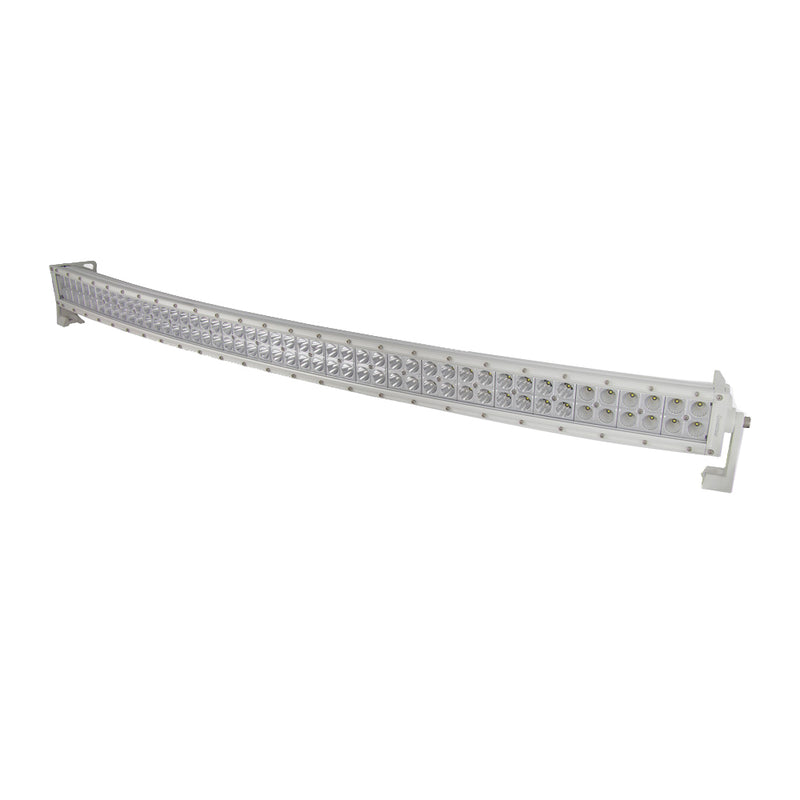

HEISE Dual Row Marine Curved LED Light Bar - 42" [HE-MDRC42]
What's in the Box? (Package Includes)
Factory Sealed- 1x HEISE Dual Row Marine Curved LED Light Bar - 42" — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
Dual Row Marine Curved LED Light Bar - 42"
Specs
- Input Voltage: 10-30V DC
- Wattage: 240 W
- (80-3W CREE LEDs)
- Raw Lumens: 19200
- LUX at 10M: 780
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore®
- Lens Material: PC
- Mounting Bracket: Die-Cast Aluminum
- Hole Dimensions:
- Brackets Turned Inward – 41 inches
- Brackets Turned Outward – 43.5 inches
- Mounting Bolt Drill – 25 inches
- Height of Light Bar Itself: 3 inches
- Depth of Light Bar Itself: 3.5 inches
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: – 40 degrees C to +60 degrees C
- Current Consumption: 12 Amps at 13.8 Volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 42"
- Housing: White
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 5"H x 8"W x 45"L WT: 13 lbs
- UPC: 086429348282
Quick Guide (pdf)
| Brand / Manufacturer | HEISE LED Lighting Systems |
|---|---|
| Category / Product Type | Lighting |
| MPN / Manufacturer Part # | HTS-69773 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
- Free Ground Shipping: Free shipping on all orders within the continental United States.
- Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
- 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
- Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
Frequently Asked Questions
Q: Is this HEISE LED Lighting Systems Lighting covered by a warranty?
A: Yes. High Tide Supply is an authorized dealer of HEISE LED Lighting Systems. All products are 100% brand new, authentic, and carry full manufacturer warranty.
Q: How fast does shipping take for the HEISE Dual Row Marine Curved LED Light Bar - 42" [HE-MDRC42]?
A: Standard ground shipping is free on all orders. Orders are processed from regional fulfillment hubs in 0–1 business days, with delivery taking 1–5 business days.
Q: What is the return policy for HEISE Dual Row Marine Curved LED Light Bar - 42" [HE-MDRC42]?
A: Brand new, unopened items in original factory packaging can be returned within 30 days. Customers must email info@hightide.supply for an RMA number. Return shipping is customer responsibility. Trolling motors, lithium batteries, and heavy freight items are final sale.
