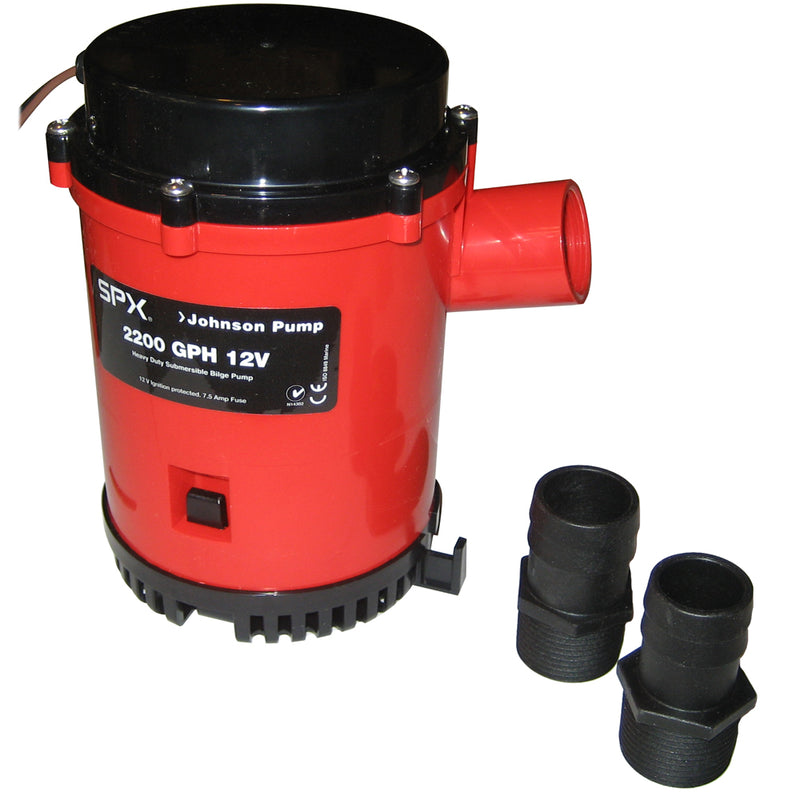

Johnson Pump 2200 GPH Bilge Pump 1-1/8" Hose 12V Threaded Port [22004]
What's in the Box? (Package Includes)
Factory Sealed- 1x Johnson Submersible Bilge / Marine Pump
- 1x 3/4in Straight Hose Barb Fitting
- 1x 3/4in 90deg Hose Barb Fitting
- 1x Inline Check Valve
- 1x Pre-Wired 3-Wire Tinned Pigtail (3 ft)
- 1x Installation & Wiring Manual
Heavy Duty Bilge Pump 2200 series 12v
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved
Features:
- Heavy duty, 12-pole double ball bearing motor
- Liquid cooled for extended motor life
- Quality engineered mechanical/lip seal
- ISO 8849 Marine and CE standards
- Easily interchangeable with most similar bilge pumps
- Pump body: Thermoplastic
- Shaft seal: Mechanical seal
- Shaft: Stainless steel (SS2343)
- Voltage: 12 V
- Capacity 1.0 m head (13.6 V/27 V): 120 l/min - 1900 GPH
- Capacity straight (13.6 V/27 V): 130 l/min - 2060 GPH
- Amperage: 7.5 A
- Fuse Size: 12 A
- Connection: 1-1/8" and 1-1/4"
- Shaft: SS2343
- Wire size: 1.3 mm2 - 16 GA
- Max height 177 mm - 7"
- Weight 2.7 kg - 6 lbs
Specifications:
- Gallons Per Hour: 2200 GPH
- Operation: Non-Automatic
- Outlet Size: 1-1/8"
- Volts: 12v
- Type: Electric
- Box Dimensions: 6"H x 7"W x 7"L WT: 5.63 lbs
- UPC: 729321220040
| Brand / Manufacturer | Johnson Pump |
|---|---|
| Category / Product Type | Bilge Pumps |
| MPN / Manufacturer Part # | HTS-38956 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
- Free Ground Shipping: Free shipping on all orders within the continental United States.
- Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
- 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
- Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
Frequently Asked Questions
Q: Is this Johnson Pump Bilge Pumps covered by a warranty?
A: Yes. High Tide Supply is an authorized dealer of Johnson Pump. All products are 100% brand new, authentic, and carry full manufacturer warranty.
Q: How fast does shipping take for the Johnson Pump 2200 GPH Bilge Pump 1-1/8" Hose 12V Threaded Port [22004]?
A: Standard ground shipping is free on all orders. Orders are processed from regional fulfillment hubs in 0–1 business days, with delivery taking 1–5 business days.
Q: What is the return policy for Johnson Pump 2200 GPH Bilge Pump 1-1/8" Hose 12V Threaded Port [22004]?
A: Brand new, unopened items in original factory packaging can be returned within 30 days. Customers must email info@hightide.supply for an RMA number. Return shipping is customer responsibility. Trolling motors, lithium batteries, and heavy freight items are final sale.
