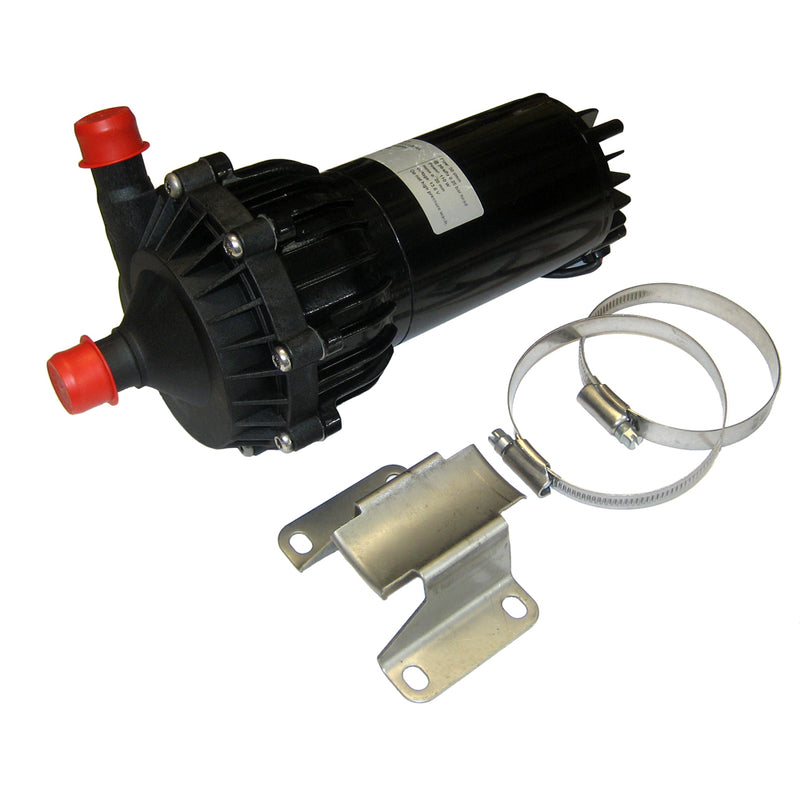

Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09]
What's in the Box? (Package Includes)
Factory Sealed- 1x Johnson Washdown / Pressure / Transfer Pump
- 1x Inlet & Outlet Hose Barb Fittings
- 1x Mounting Screws & Bracket
- 1x Wiring Lead & Strainer Screen
- 1x Installation Guide
CM90P7-1 13.6V CIRCULATION PUMP D20
CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.
Specifications:
- System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
- Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
- Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
- Dry running: 30 minutes
- Dimensions: 244mm L x 120mm W x 150mm H
- Weight: 6.6lbs
- Capacity: 17.2 GPM
- Ports: 3/4"
Specifications:
- Gallons Per Minute: 17.2 GPM
- Volts: 12v
- Box Dimensions: 6"H x 7"W x 11"L WT: 6.66 lbs
- UPC: 7330717013172
| Brand / Manufacturer | Johnson Pump |
|---|---|
| Category / Product Type | Washdown / Pressure Pumps |
| MPN / Manufacturer Part # | HTS-58195 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
