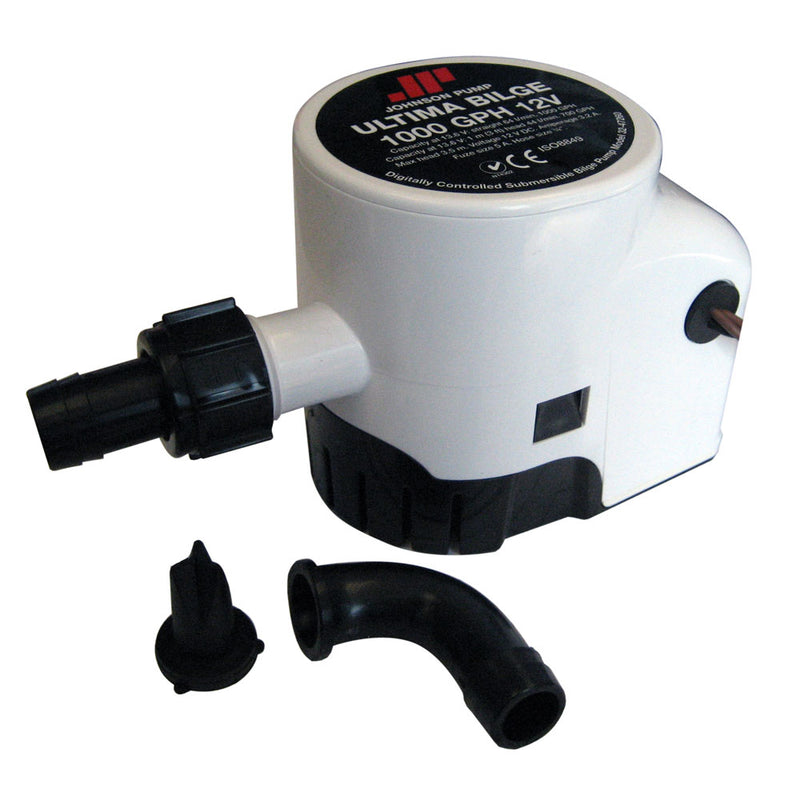

Johnson Pump Ultima Bilge 1000 GPH 3/4" Hose Dura Port [32-47260-003]
What's in the Box? (Package Includes)
Factory Sealed- 1x Johnson Submersible Bilge / Marine Pump
- 1x 3/4in Straight Hose Barb Fitting
- 1x 3/4in 90deg Hose Barb Fitting
- 1x Inline Check Valve
- 1x Pre-Wired 3-Wire Tinned Pigtail (3 ft)
- 1x Installation & Wiring Manual
Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.
All version are delivered with a removable check valve.
The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge
control panel.
CE-Approved
Features:
- Compact, all-in-one unit
- Integrated Ultima Switch sensing right into the pump body
- No Mercury
- Removable clip on basket design
- Removable impeller cover allows for easy clean out
- 3-wire device can be run in auto or manual override mode
- No tools needed for maintenance
- Extremely energy efficient
- Water-cooled motor for long service intervals
- Pump Body: ABS
- Shaft Seal: Lip Seal
- Shaft: Stainless steel (SS2343)
- Voltage: 12 V DC
- Capacity 3 ft (0.9 m) head (13.6 V): 44 l/min - 700 GPH
- Capacity straight (13.6 V): 64 l/min - 1000 GPH
- Amperage: 3.2 A
- Fuse Size: 5 A
- Connection: 3/4"
- Length:142 mm - 6"
- Width:82 mm - 3.2"
- Height:105 mm - 4.1"
- Weight:0.66 kg - 23.3 oz.
Specifications:
- Gallons Per Hour: 1000 GPH
- Operation: Automatic
- Outlet Size: 3/4"
- Volts: 12v
- Type: Electric
- Box Dimensions: 4"H x 5"W x 6"L WT: 1.36 lbs
- UPC: 729321472609
Owner's Manual (pdf)
