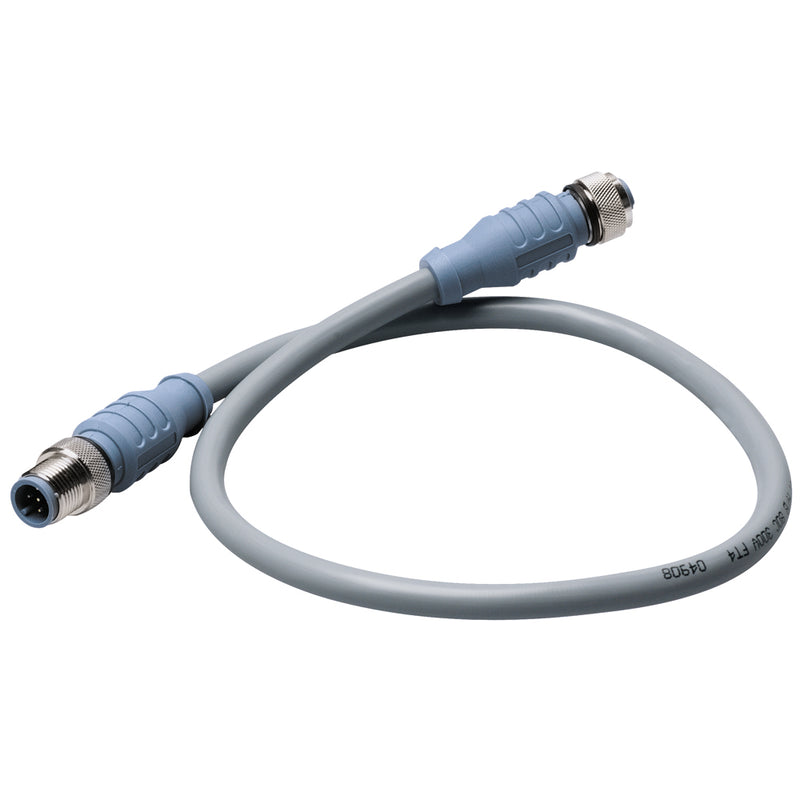

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]
Micro Double-Ended Cordset - 0.5M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59" Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V Cable
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
- (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications:
- Data Interface: NMEA 2000
- NMEA 2000 Connectors: Backbone/Drop Cables
- Box Dimensions: 1"H x 5"W x 7"L WT: 0.13 lbs
- UPC: 873804001500
