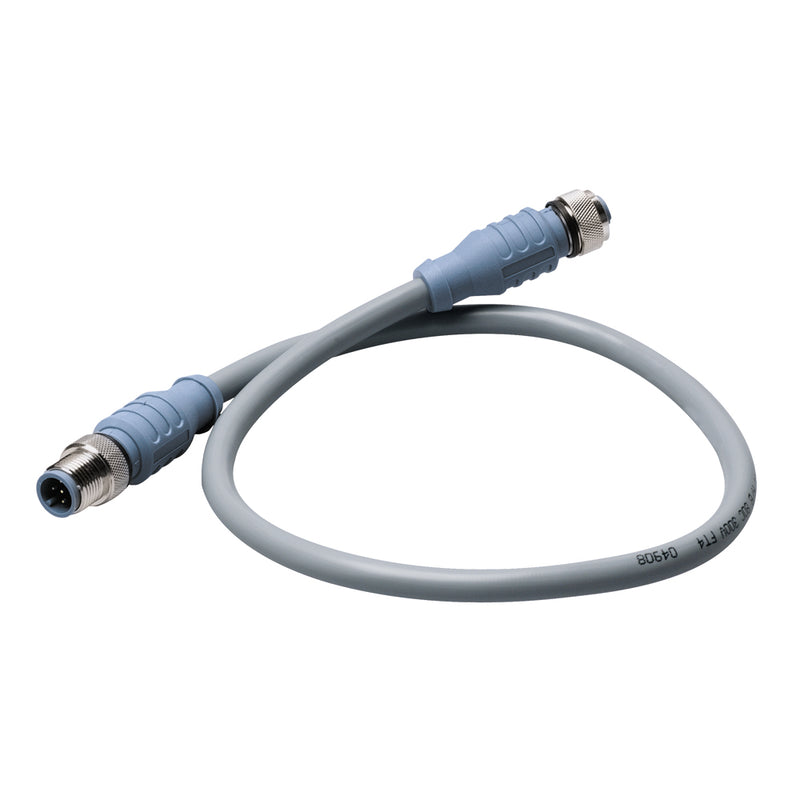

Maretron Micro Double-Ended Cordset - 8M [CM-CG1-CF-08.0]

MPN / Part #: HTS-33360 Brand: Maretron In Stock – Ready to Dispatch
$75.00
📍 Ships From: Tampa, FL or Bayville, NJ
⏱️ Est. Delivery: 1 - 3 Business Days (USPS Economy Ground)

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 8m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 2"H x 9"W x 9"L WT: 1.2 lbs
    • UPC: 873804001586
  • Brand / Manufacturer Maretron
    Category / Product Type NMEA Cables & Sensors
    MPN / Manufacturer Part # HTS-33360
    Item Condition 100% Brand New / Factory Sealed
    Warranty Status Full Original Manufacturer Warranty Backed
    Fulfillment Hub Dispatched from Regional Marine Distribution Hubs
    • Free Ground Shipping: Free shipping on all orders within the continental United States.
    • Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
    • 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
    • Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
    Frequently Asked Questions

    Q: Is this Maretron NMEA Cables & Sensors covered by a warranty?

    A: Yes. High Tide Supply is an authorized dealer of Maretron. All products are 100% brand new, authentic, and carry full manufacturer warranty.

    Q: How fast does shipping take for the Maretron Micro Double-Ended Cordset - 8M [CM-CG1-CF-08.0]?

    A: Standard ground shipping is free on all orders. Orders are processed from regional fulfillment hubs in 0–1 business days, with delivery taking 1–5 business days.

    Q: What is the return policy for Maretron Micro Double-Ended Cordset - 8M [CM-CG1-CF-08.0]?

    A: Brand new, unopened items in original factory packaging can be returned within 30 days. Customers must email info@hightide.supply for an RMA number. Return shipping is customer responsibility. Trolling motors, lithium batteries, and heavy freight items are final sale.

    }
