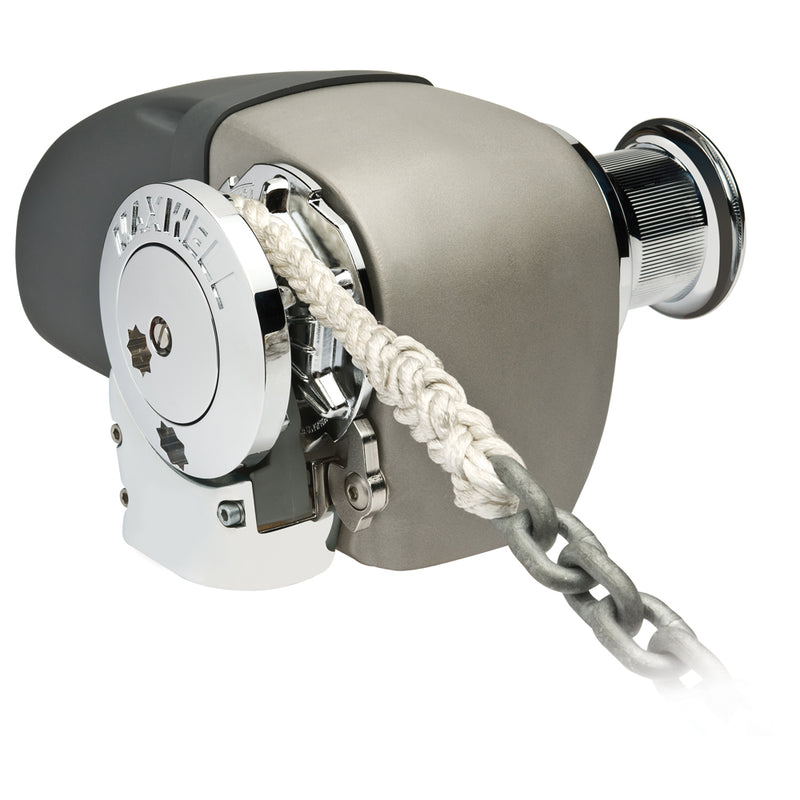

Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan [HRC10812V]

HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan

Designed for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic rope / chain anchor winches.

Kit Includes

• Windlass

• On/Off Breaker Panel

• Reversing Solenoid

• Up/down Panel Switch

• Clutch Release Handle

• The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlass

• Designed to effortlessly retrieve and deploy 8mm (5/16" ) chain and 16mm (5/8" ) three strand or 8-brait (plait) rope.

• The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16" or 8 mm marine grade chain spliced to 5/8" rope.

• The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck

• Case Material: Anodized Aluminum

• The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.

• This two piece watertight case allows for quick and easy, on-deck,routine maintenance.

• Simple " bolt down" installation ensures effortless and rapid on-deck installation and set up.

• The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

• The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.

• The unique Maxwell " wrap around" horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

• High quality Stainless Steel chainwheels

• The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

• The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.

• Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required.

• The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.

• Exclusive Maxwell 3 YEAR Limited Warranty


Specifications


• Maximum PUll: 1540 lbs

• Chain Short Link: 5/16" or 8mm

• Chain Speed (Anchor Retrieval): 79 ft per Minute

• Rope Speed (Anchor Retrieval): 65 ft per Minute

• Rope Size (Nylon 3 strand or 8 Plait): 5/8"

• Power Supply (DC): 12VDC

• Motor Power: 1000 Watts

• Net weight: 42 lbs
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chain - Diameter (Inches): 5/16"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 12"H x 17"W x 19"L WT: 56 lbs
• UPC: 1000000002683
