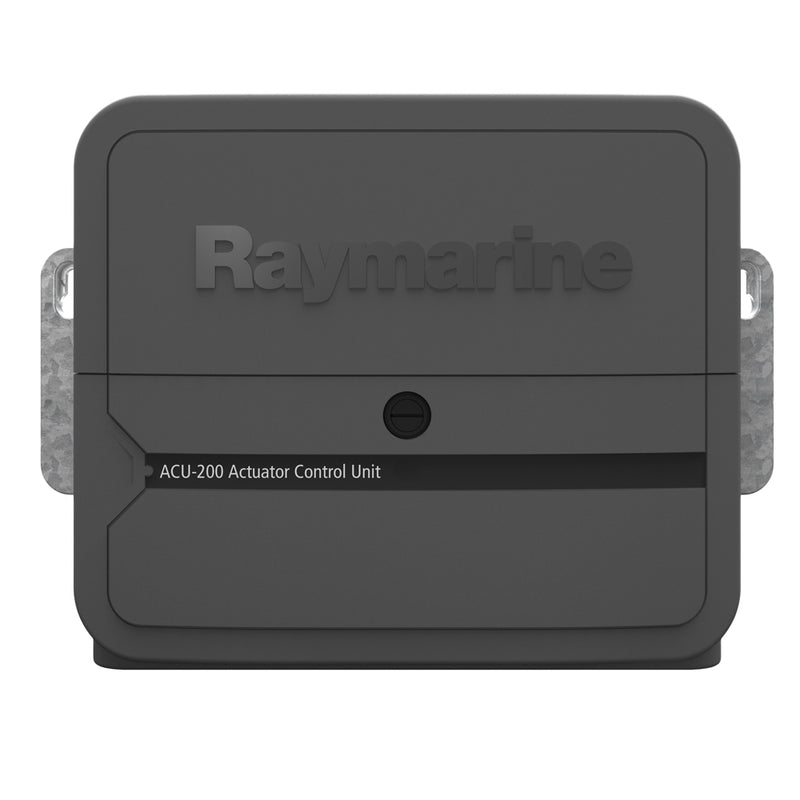

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections

  • Includes the M81105 Rotary Rudder Reference

  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

  • Type: Parts
  • Box Dimensions: 7"H x 11"W x 17"L WT: 6.8 lbs
  • UPC: 723193768914
$95.84
View Details
$52.00
View Details
$149.99
View Details
$45.00
View Details
Brand Raymarine
Product Type Autopilot Drive Units
SKU HTS-49109
Availability In Stock
