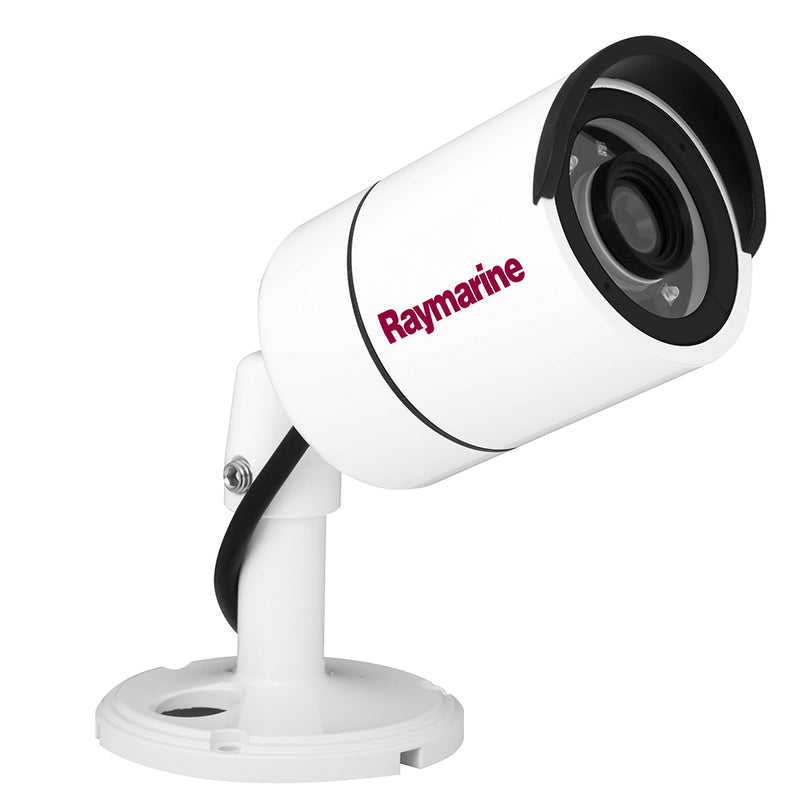

Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]
What's in the Box? (Package Includes)
Factory Sealed- 1x Raymarine CAM210 Day & Night IP Marine Bullet Camera — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
CAM210 Day & Night IP Marine Bullet Camera
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
- Plug and play integration with Raymarine MFD's running Lighthouse II
- Power over Ethernet (PoE) or direct 12V DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Specifications:
- CPU: 32-bit ARM9 RISC CPU up to 432MHz
- Flash / SDRAM: 128MB / 128MB
- Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
- Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
- Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
- S/N Ratio: More than 50dB
- Minimum Illumination: 0Lux (IR On)
- IR Distance: 20M
- Day & Night: ICR
- Lens: 6.0mm Megapixel Board Lens
- Field of View:
Diagonal = 63.6° +/- 3°
Horizontal = 53.3° +/- 3°
Vertical = 33.1° +/- 3° - Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
- Resolution: Up to 1920 x 1080 (Full HD)
- Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
- Video Streaming:
Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264 - Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
- Image Setting:
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
Effects - Color, Sharpness, Mirror / V-Flip - Security: Password protection, User access log, HTTPS encryption
- Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
- Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
- Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
- Power Consumption: Max. 3.3W, Max. 5.3W with IR
- Net Weight: 900g
- LED's: Power, Network Connection
- Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
- General Operation Temperature: 0°40° Celsius(32F104F)
- Storage Temperature: -10°50° Celsius(14F122F)
