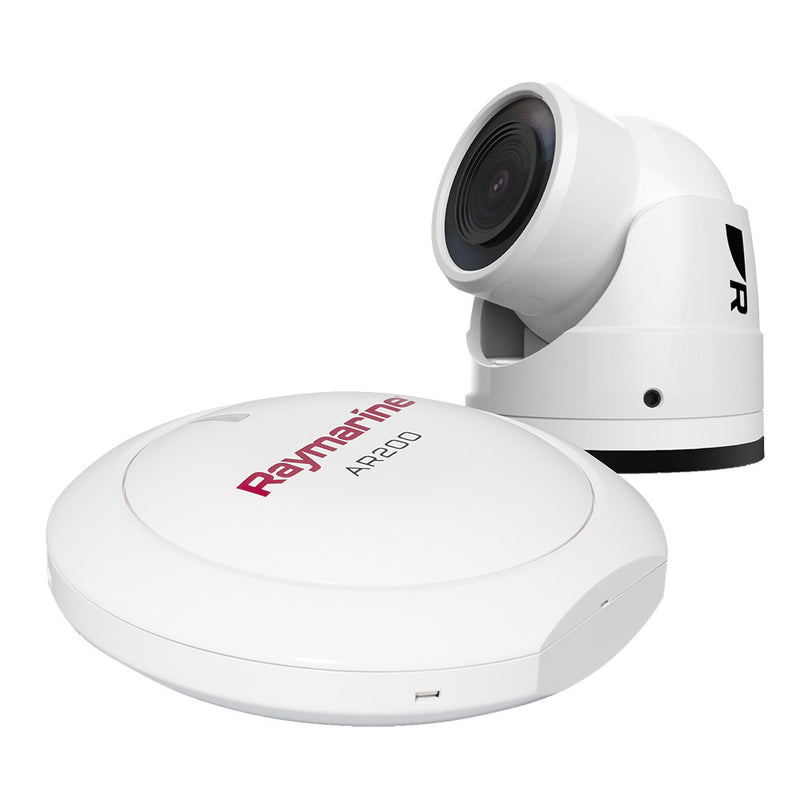

Raymarine CAM400 Augmented Reality Bundle - White [T70603]
What's in the Box? (Package Includes)
Factory Sealed- 1x Raymarine CAM400 Augmented Reality Bundle - White — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
CAM400 Augmented Reality Bundle - White
The CAM400 is a rugged fixed-mount marine IP camera for above-deck and below-deck monitoring applications, designed for seamless integration with Raymarine Axiom or Axiom 2 chartplotters. It can be deployed as a standalone camera or as part of a multi-camera system, supporting flexible monitoring and viewing across connected displays and networked devices.
Use CAM400 to assist with close-quarters maneuvering, monitor blind spots, check on crew and passengers, or enhance onboard security. With integrated infrared illumination, CAM400 provides dependable image performance in daylight, low light, and nighttime.
Features:
- High-definition marine IP camera for Raymarine Axiom systems.
- Full HD 1080p video.
• Wide-angle 129° horizontal field of view.
- Optimized for docking, onboard monitoring, and security applications.
- Enhanced situational awareness;* pair with a Raymarine AR200 sensor to unlock augmented reality on your Axiom display.
- Overlay AIS targets, waypoints, and chart details directly onto the live video image.
- Integrated infrared illumination for low-light and night-time awareness.
- Flexible installation options with Power over Ethernet (PoE) or 12 V DC.
- Multi-stream video support for integration with onboard systems.
- Image flip and invert functions for ball-up and ball-down mounting.
- Compact, low-profile design for discreet installation.
- Rugged, marine-grade construction for above-deck environments.
- Factory-installed RayNet® Ethernet pigtail with no waterproof RJ-45 coupler required.
- Optional on-screen distance lines when integrated with LightHouse 5 on Axiom 2 systems
Enhanced Awareness with ClearCruise™ Augmented Reality
When paired with a Teledyne Raymarine AR200 sensor module and compatible Axiom chartplotter, CAM400 enables ClearCruise™ Augmented Reality. Navigation aids, AIS targets, waypoints, and chart objects can be overlaid directly onto the live camera image, helping operators better understand their surroundings and maintain situational awareness while underway.
AR200 IP Camera Stabilization Module
The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite System (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch, and roll data to compatible Axiom MFDs. When combined with a compatible IP camera, the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.”
Features:
- 9-axis AHRS (attitude and heading reference system) sensor
- 28-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS, and GAGAN support
- When combined with a compatible IP camera, the AR200 enables the use of ClearCruise Augmented Reality features available on Axiom multifunction displays
- NMEA 2000 compliant
- IPX6 / IPX7 waterproof rating
In the Box:
- E70716 CAM400 White
- E70537 AR200 Augmented Reality
- A62362 Raynet (F) to Raynet (F) Cable - 10M
- A06034 STNG Backbone Cable 1M
- A06028 STNG T- Piece Connector
