Raymarine Evolution EV-150 Hydraulic Autopilot System Pack [T70330]
What's in the Box? (Package Includes)
Factory Sealed- 1x Raymarine Evolution EV-150 Hydraulic Autopilot System Pack β Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
Evolution EV-150 Hydraulic Autopilot System Pack

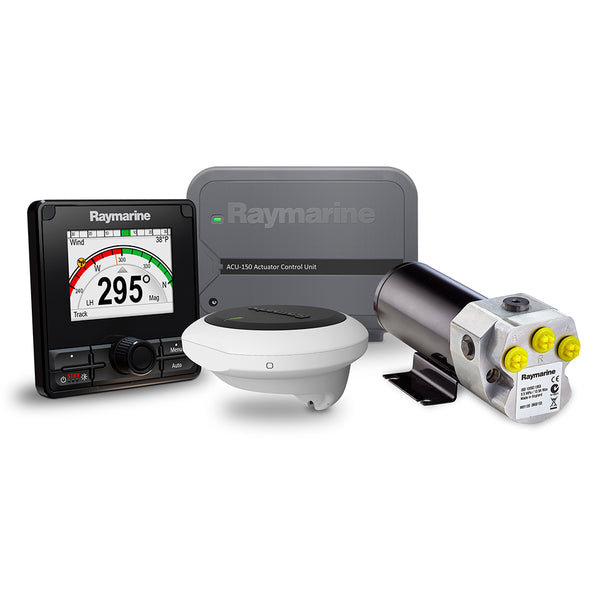

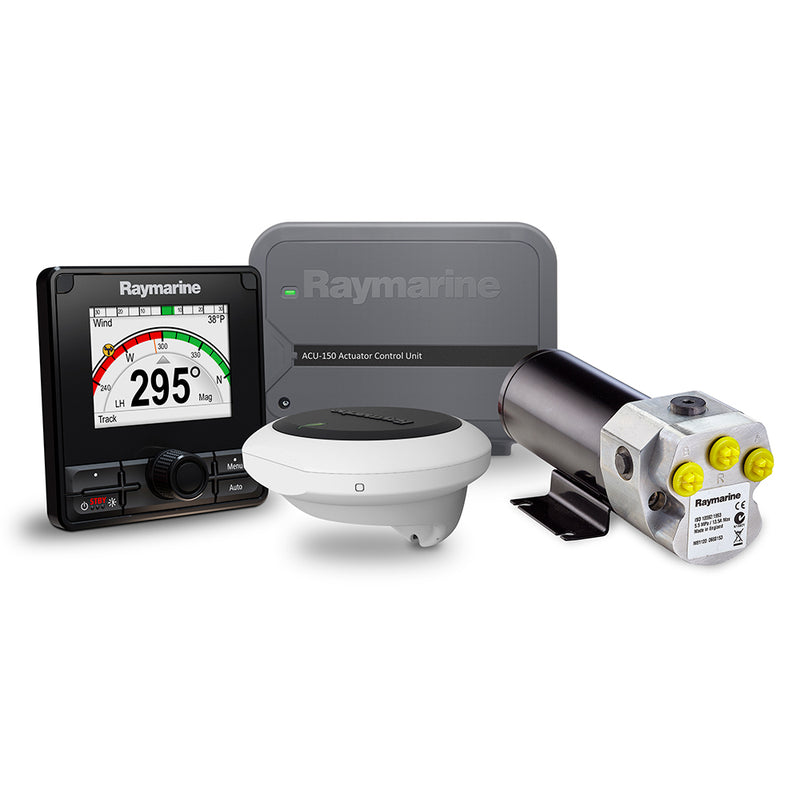

The Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.
Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.
The Evolution EV-150 system also employs Raymarine's patented Hydro-BalanceΒ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running.
Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread.
The system is also equipped with Raymarine latest Evolution TrackIQΒ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes.
The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.
Includes
- E70329 p70Rs Control Head
- E70096 EV-1 Sensor Core
- R70160 Evolution Cable Kit
- E70430 ACU-150 Actuator Control Unit
- M81120 Type 1 12v Hydraulic Pump
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 8"H x 17"W x 20"L WT: 15.45 lbs
- UPC: 723193853719
| Brand / Manufacturer | Raymarine |
|---|---|
| Category / Product Type | Autopilot Sensors & Feedback |
| MPN / Manufacturer Part # | HTS-64508 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
- Free Ground Shipping: Free shipping on all orders within the continental United States.
- Same-Day Dispatch: Orders placed before 4 PM EST ship same business day from our regional marine logistics hubs.
- 100% Authorized Dealer: All electronics and equipment are factory sealed with full manufacturer warranty support.
- Return Policy: Unopened 30-day returns. Email info@hightide.supply to request an RMA number. Customer pays return shipping. Trolling motors, lithium batteries, and heavy freight items are final sale.
Frequently Asked Questions
Q: Is this Raymarine Autopilot Sensors & Feedback covered by a warranty?
A: Yes. High Tide Supply is an authorized dealer of Raymarine. All products are 100% brand new, authentic, and carry full manufacturer warranty.
Q: How fast does shipping take for the Raymarine Evolution EV-150 Hydraulic Autopilot System Pack [T70330]?
A: Standard ground shipping is free on all orders. Orders are processed from regional fulfillment hubs in 0β1 business days, with delivery taking 1β5 business days.
Q: What is the return policy for Raymarine Evolution EV-150 Hydraulic Autopilot System Pack [T70330]?
A: Brand new, unopened items in original factory packaging can be returned within 30 days. Customers must email info@hightide.supply for an RMA number. Return shipping is customer responsibility. Trolling motors, lithium batteries, and heavy freight items are final sale.
