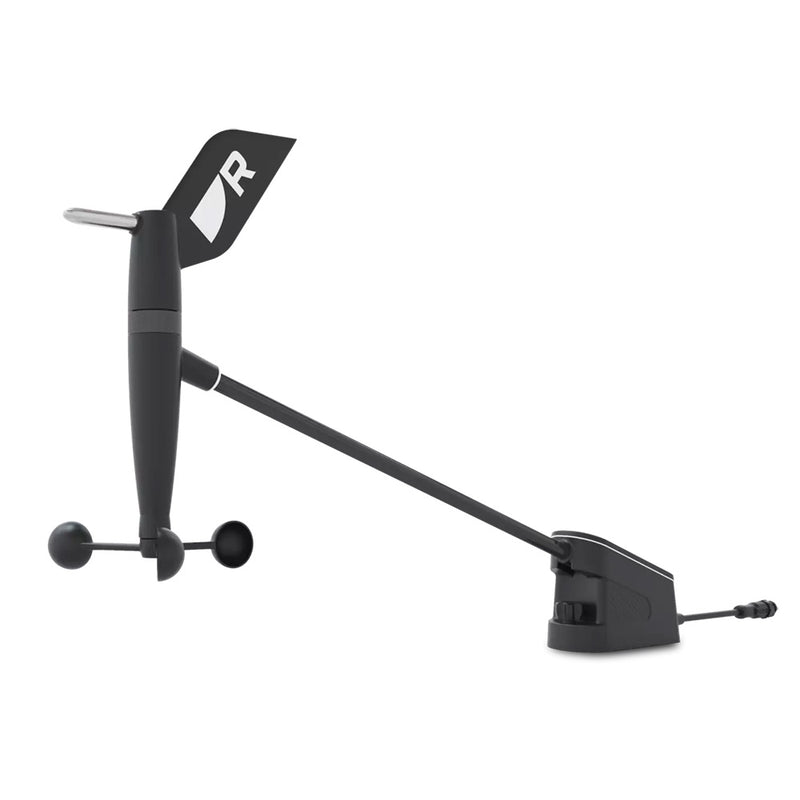

Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable [E70670]
What's in the Box? (Package Includes)
Factory Sealed- 1x Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.
Install & Go!
Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
Finely Tuned
Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.
Sail Smarter
Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
Specifications:
Length
- Wind transducer (including cable): 657.762 mm (25.90 in)
- Wind transducer (excluding cable): 540.712 mm (21.29 in)
- Wired gateway: 155.61 mm (6.13 in)
Width
- Wind transducer: 46.96 mm (1.85 in)
- Wired gateway: 47.38 mm (1.88 in)
Height
- Wind transducer: 305.86 mm (12.04 in)
- Wired gateway: 30.61 mm (1.21 in)
Power
- Nominal supply voltage: 12 V dc (via SeaTalk NG)
- Operating voltage range: 9 V to 16 V dc
- Power Consumption: < 100 mW
- Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
- NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1
Environmental
- Operating temperature range: -25°C to +55°C (-13°F to +131°F)
- Storage temperature range: -30°C to +70°C (-22°F to +158°F)
- Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C
- Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3
- Wind: 115 mph (185 kph)
- Vibration: EN 60945:2002 (exposed)
What's In The Box?
- No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
- No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
- 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
- Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
- Mast cable, 30 m (98.43 ft) reel
- Documentation
- Wind transducer
- Smart wind-wired gateway
- SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
