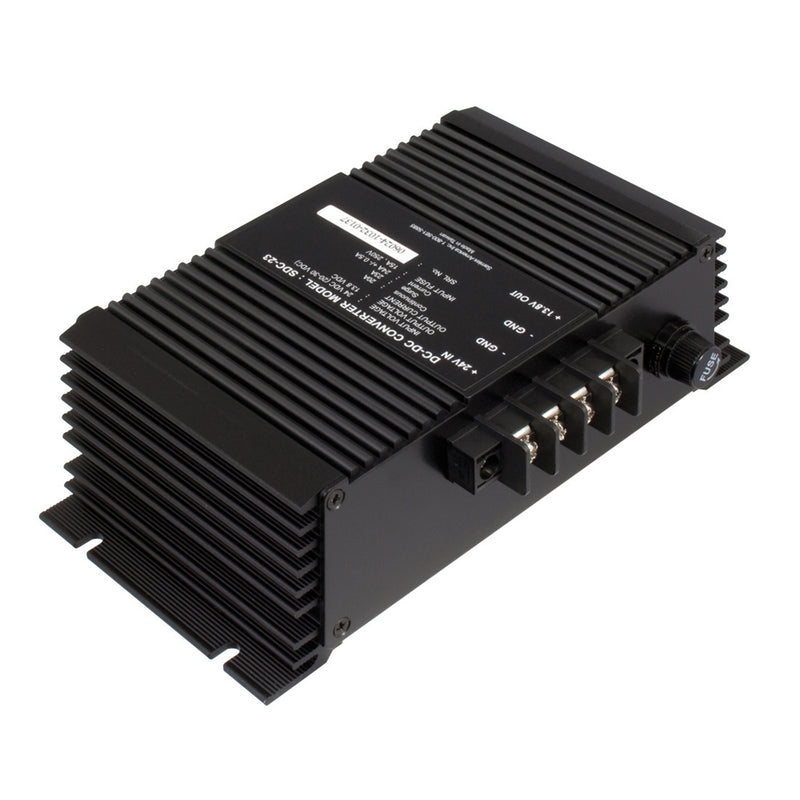

Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter [SDC-23]
What's in the Box? (Package Includes)
Factory Sealed- 1x Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
20A Non-Isolated Step-Down 24VDC-12VDC Converter
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.
Features:
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Current limiting circuit
- Overvoltage crowbar circuit
- Non-Isolated for negative ground system
Specifications:
- Input: 20-30 VDC
- Output: 13.8 VDC
- Amps: 20 Amps
- Weight: 2.2 (lbs)
- Weight: 1 (kg)
- Dimensions: 7.75 x 4.75 x 2.4 (in)
- Dimensions: 19.7 x 12.1 x 6.1 (cm)
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
Brochure (pdf)
