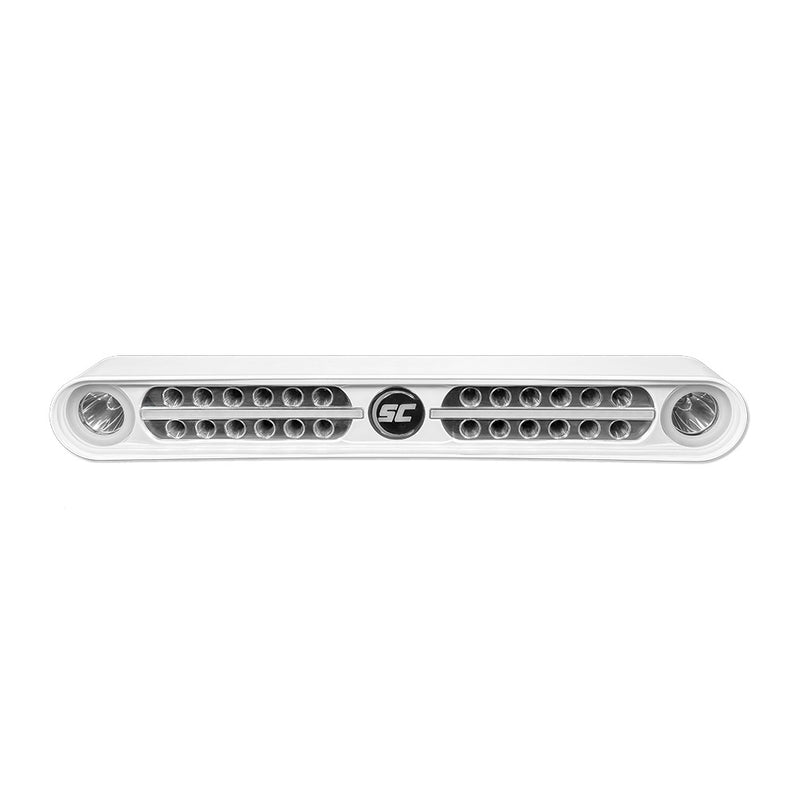

![Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics [SCM-EAGLE-RAY-WH] - Image 1](http://hightide.supply/cdn/shop/files/102987XL.jpg?v=1779508612&width=600)

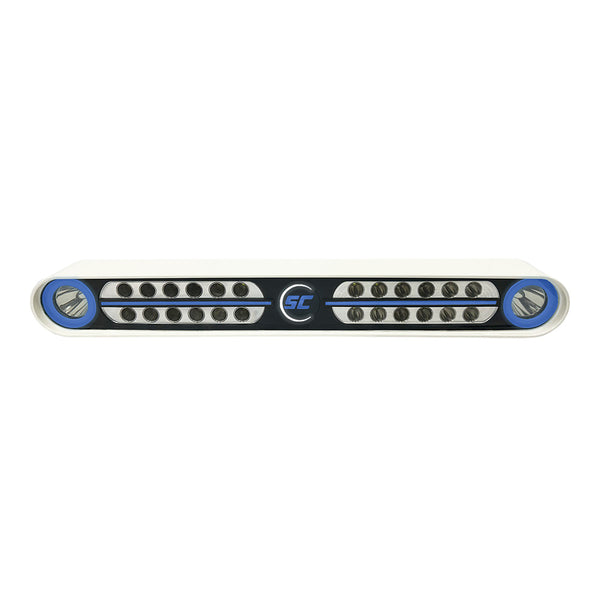

![Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics [SCM-EAGLE-RAY-WH] - Image 2](http://hightide.supply/cdn/shop/files/102987BXL.jpg?v=1779508612&width=600)

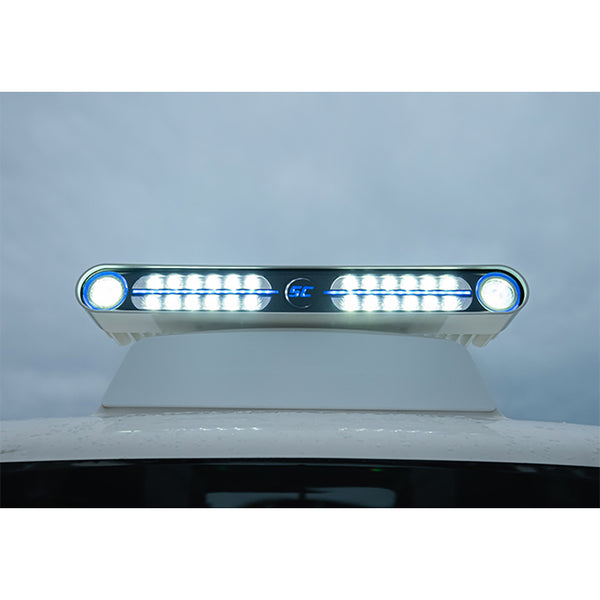

![Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics [SCM-EAGLE-RAY-WH] - Image 3](http://hightide.supply/cdn/shop/files/102987CXL.jpg?v=1779508612&width=600)
![Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics [SCM-EAGLE-RAY-WH]](http://hightide.supply/cdn/shop/files/102987XL.jpg?v=1779508612&width=800)
Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics [SCM-EAGLE-RAY-WH]
What's in the Box? (Package Includes)
Factory Sealed- 1x Shadow-Caster Eagle Ray LED Light Bar - White Housing Dual Optics — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page
Eagle Ray LED Light Bar - White Housing & Dual Optics
Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray – a unique light bar with a combination of focused laser-driven white light beams and a wide 60-degree LED flood array to efficiently light the way.
The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster® NMEA 2000 Light Commander interface.
Laser Features:
- Automotive-grade laser-driven white lights
- Blue halo illumination around optics indicates a power state
- Adjustable 5-100° beam angle control with a switch or MFD interface
Flood Features:
- 24 bright white LEDs
- Blue accent light strips indicate the brightness level
- 60-degree beam angle
- Adjustable brightness control with a switch or MFD interface
Technical Information:
- 20,000 lumens
- Billet Aluminum housing in white finish
- Remote power trigger to provide simpler installation (main current supply is not controlled through a switch)
- Borosilicate glass window
- 10-30V input
- 200W max power
- 16.5A current draw at 12V DC
- 2.5” H x 20” W x 5.4” D [65.3 x 506.5 x 136.9mm]
Control Options
On/off Push Buttons
Click the on/off button to turn the laser/flood lights on. Press and hold the button to adjust the beam angle (laser) or brightness (flood). Click the on/off button to turn the laser/flood lights off.
Standard Marine Rocker Switch
Click the rocker switch up/down button to turn the laser/flood lights on. Press and hold the switch up/down to adjust the beam angle (laser) or brightness (flood). Click the rocker switch up/down button to turn the laser/flood lights off.
Shadow-NET®/ NMEA 2000 Control
Full feature control through a Multi-Function Display (MFD). The Shadow-NET® Light Commander allows for easy and independent control of brightness and beam angle for the Eagle Ray Light Bar. Create and store pre-configured light settings for use as part of a lighting ‘scene’ for convenience at night.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- LED: Yes
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 4"H x 8"W x 22"L WT: 10.95 lbs
- UPC: 8500563200548
Owner's Manual (pdf)
Brochure (pdf)
