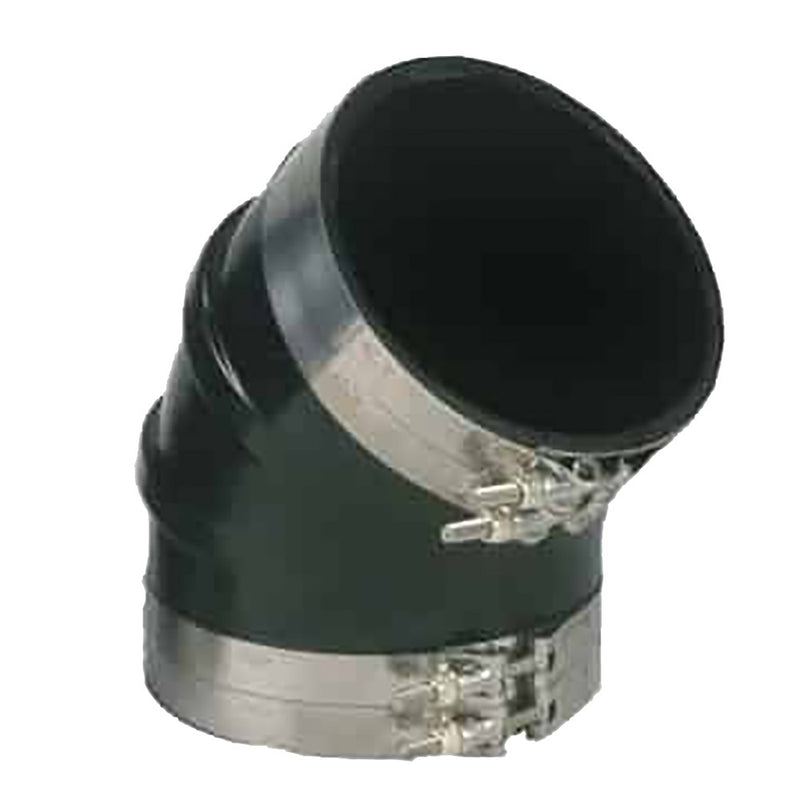

Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-545-S/S]

5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 250°F (121°C)

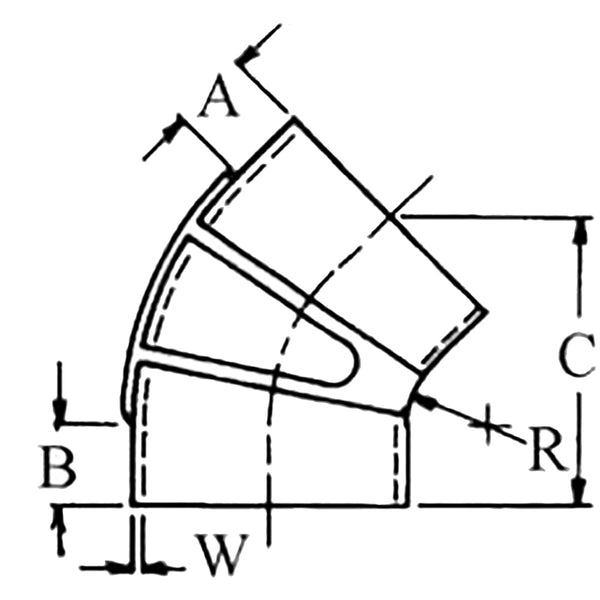

Specifications:

• Inner Diameter: (inch) 5” / (mm) 127
• Outer Diamter: (inch) 5.5" / (mm) 139.7
• A: (inch) 1.62” / (mm) 48.1
• B: (inch) 1.62” / (mm) 48.1
• C: (inch) 5.75” / (mm) 146
• W: (inch) 0.25” / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478

Specifications:

• ID Diameter (inches): 5"
• Box Dimensions: 8"H x 8"W x 9"L WT: 2.5 lbs
• UPC: 704917000466
