Veratron 85mm (3-3/8") VMH-35D Diesel Multifunction Gauge [B00171101]
What's in the Box? (Package Includes)
Factory Sealed- 1x Veratron 85mm (3-3/8") VMH-35D Diesel Multifunction Gauge — Original Factory Package
- All standard accessories and hardware as packed by the manufacturer
- Manufacturer's documentation, warranty card, and instruction manual
For exact package contents, see the manufacturer's product page

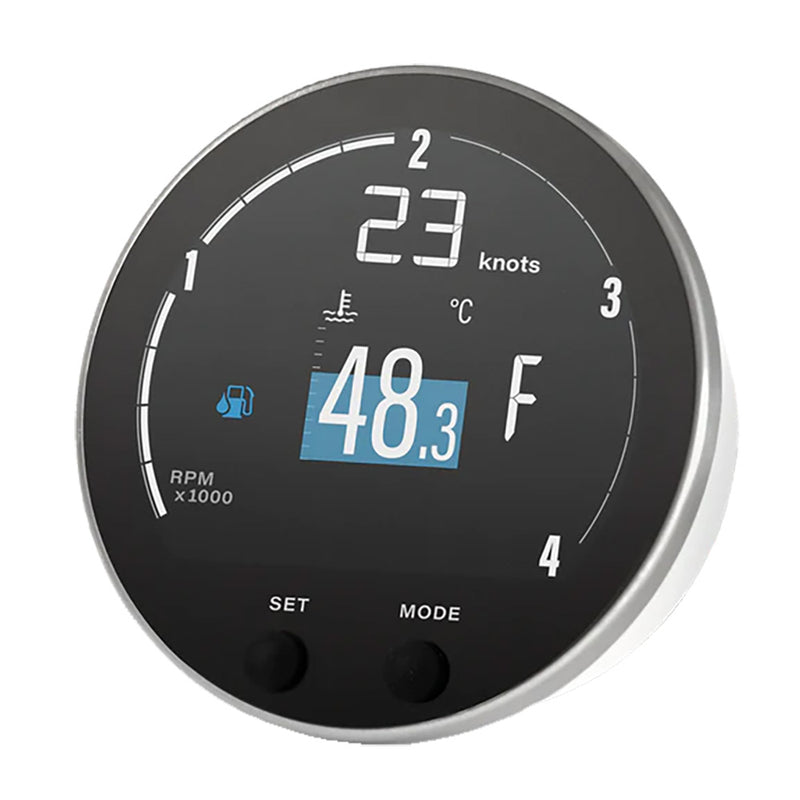

85mm (3-3/8") VMH-35D Diesel Multifunction Gauge
The VMH 35-D is the perfect standalone solution for monitoring your diesel engine. With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display that shows a wide amount of data from your engine, battery, tank, and GPS.
Specific information about your diesel engine is provided with alarms, either received from the SAE J1939 bus or locally set through the embedded menu. Both 12V and 24V systems are supported, and EasyLink connectivity allows your dashboard to be expanded with additional VMH 14 satellite displays to keep your sensitive data under control. The embedded high-performance GPS receiver further enhances the display capabilities by adding speed, position, and heading data.
The Veratron VMH 35 is designed with a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.
The embedded NMEA 2000 gateway distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters, saving the need for an additional external converter.
Powered by the latest microprocessor, the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.
Features:
- High-performance GPS embedded
- 4x analog input for external sensors
- Waterproof to IPX7
- NMEA 2000 certified with embedded analog gateway
- SAE J1939 CAN port
- EasyLink output for up to 16 VMH 14 satellites
- Waterproof to IPX7
In the Box:
- VMH35-D Gauge
- Mounting Spinlock
- Wire harness
- Safety Instructions
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Box Set: No
- Gauge Size: 3-3/8"
- Gauge Type: Multifunction
- Series: VMH-35
- Voltage - Input Range (Volts): 12-24v
- Box Dimensions: 4"H x 6"W x 6"L WT: 0.75 lbs
- UPC: 7640190290466
Owner's Manual (pdf)
