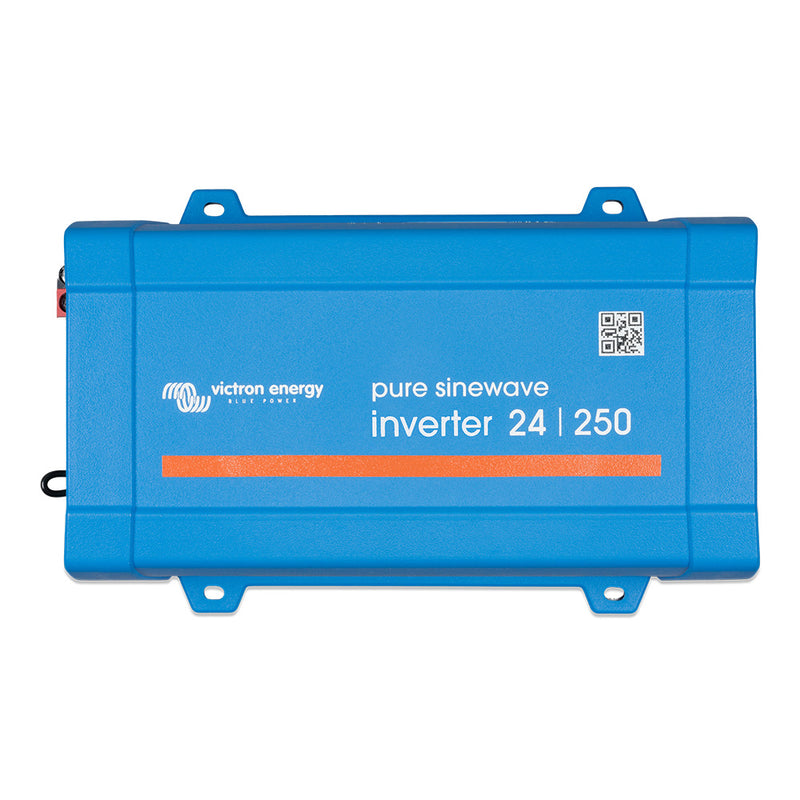

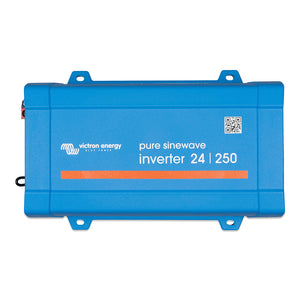

Victron Inverter 24/250 120V VE.Direct Nema 5-15R [PIN241250500]
What's in the Box? (Package Includes)
Factory Sealed- 1x Victron Phoenix Inverter
- 1x DC Battery Input Cables with Ring Terminals
- 1x AC Output Terminal Block
- 1x Mounting Bracket & Hardware
- 1x Manual
Inverter 24/250 120V VE.Direct Nema 5-15R
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut -off and restart levels
- Dynamic cut -off: load-dependent cut-off level
- Output voltage 2 10 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring - In- and output voltage, % load and alarms
Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.
High start-up power - Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.
ECO mode - When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.
Remote on/off - A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.
To transfer the load to another AC source: the automatic transfer switch - For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

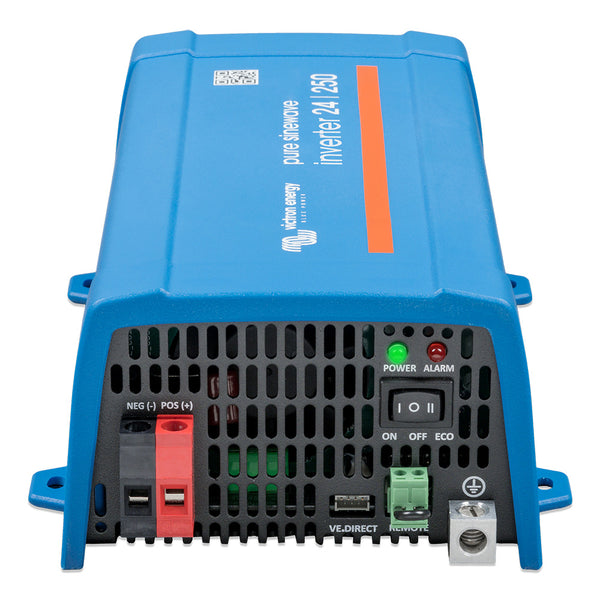

DC connection with screw terminals - No special tools needed for installation

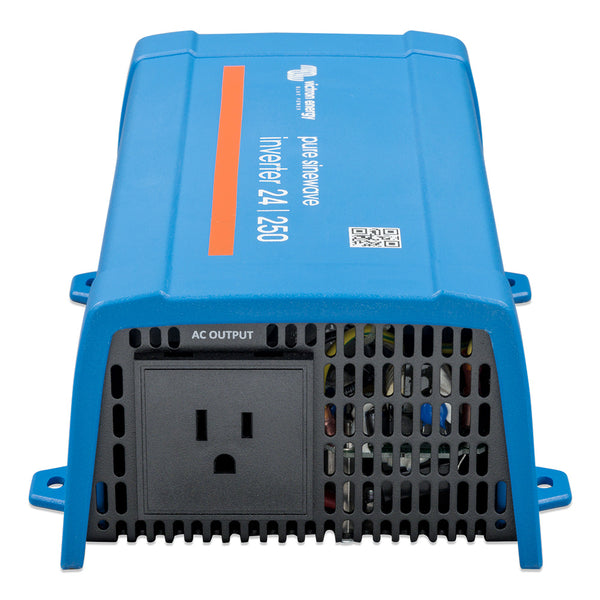

Output Sockets - Nema 5-15R
Please contact your dealer for any returns, repairs or support issues related to this product.Specifications:
- AC Connection Type: Outlet
- DC Connection Type: Hardwire
- GFCI: Yes
- Inverter Cont. Output Wattage: 175W
- Inverter Input Voltage: 24VDC
- Inverter Output Voltage: 120VAC
- Inverter Surge Rating: 400W
- Outlet Qty: 1 NEMA 5-15R
Owner's Manual (pdf)
Brochure (pdf)
| Brand / Manufacturer | Victron Energy |
|---|---|
| Category / Product Type | Inverters |
| MPN / Manufacturer Part # | HTS-115097 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
