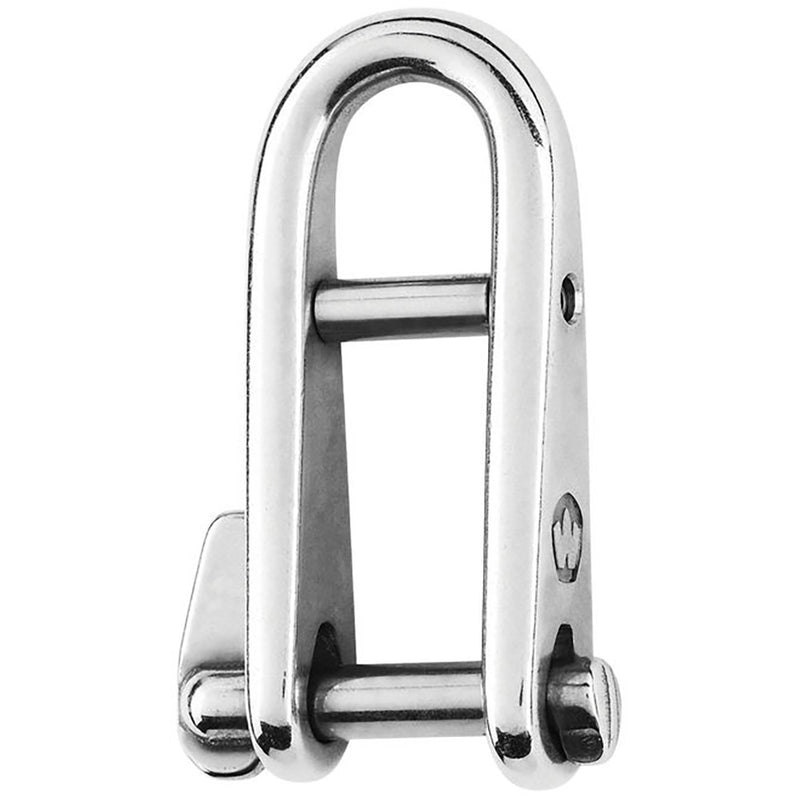

Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter [91433W]
HR Key Pin Shackle With Bar - 6mm Pin Diameter
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Perfect product for halyards or applications requiring opening/closing the shackle often
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 1320 / (kg) 600
- Breaking load: (lb) 4850 / (kg) 2200
- Weight: (lb) 0.117 / (g) 53

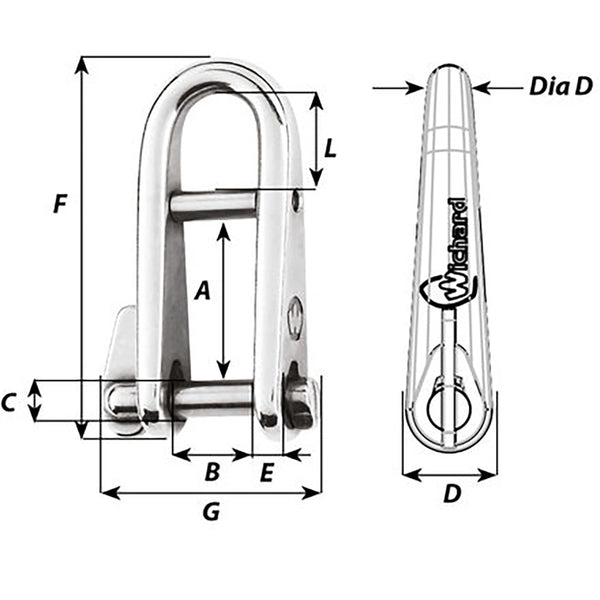

Dimensions:
- A: (inch) 1 49/64" / (mm) 45
- B: (inch) 5/8" / (mm) 16
- C: (inch) 15/64" / (mm) 6
- D: (inch) 33/64" / (mm) 13
- E: (inch) 5/32" / (mm) 4
- F: (inch) 2 23/64" / (mm) 60
- G: (inch) 1 29/64" / (mm) 37
- L: (inch) 19/32" / (mm) 15
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
| Brand / Manufacturer | Wichard Marine |
|---|---|
| Category / Product Type | Shackles/Rings/Pins |
| MPN / Manufacturer Part # | HTS-97740 |
| Item Condition | 100% Brand New / Factory Sealed |
| Warranty Status | Full Original Manufacturer Warranty Backed |
| Fulfillment Hub | Dispatched from Regional Marine Distribution Hubs |
